KAWASAKI TERYX H2 RAZORBACK 3.2 CVT BELT TEMP GAUGE KIT
Vehicle Fitment: ✔ KAWASAKI - UTV
-
TERYX4 H2 - 2025, 2026
-
TERYX4 H2 DELUXE eS - 2025, 2026
-
TERYX5 H2 DELUXE eS - 2025, 2026
Protect Your CVT Belt. Monitor Real Temperature. Ride With Confidence.
The Razorback 3.2 CVT Belt Temperature Gauge Kit is the gold standard for monitoring real-time CVT belt temperature on belt-driven powersports vehicles. Designed for extreme environments and proven across UTVs, ATVs, snowmobiles, and the Can-Am Ryker, this system measures actual belt surface temperature — not ambient air — allowing you to react before excessive heat destroys your belt.
CVT belts are expensive. Excessive heat is their #1 killer.
Knowing when to back out of the throttle can dramatically extend belt life and prevent costly trail or roadside failures.

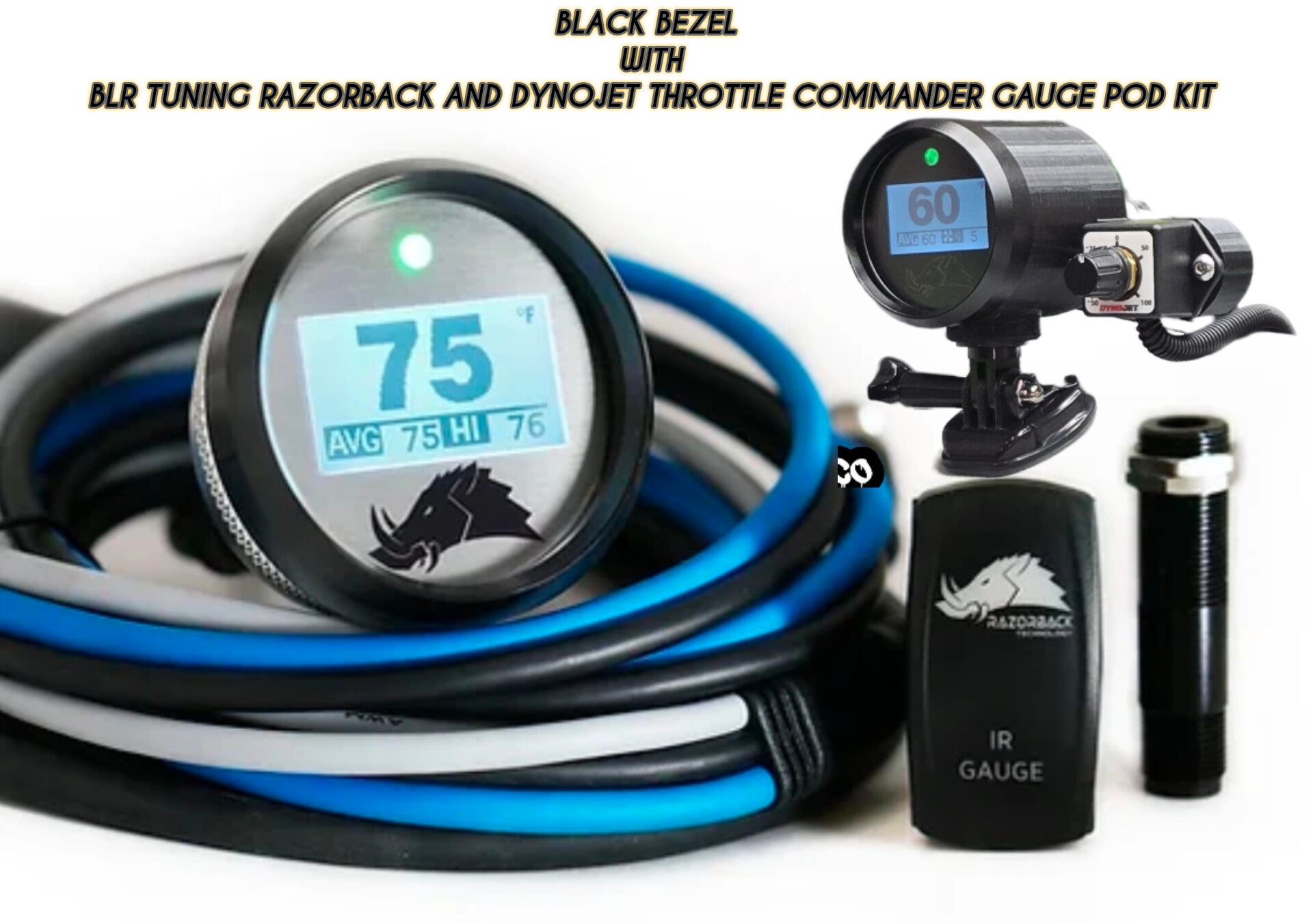

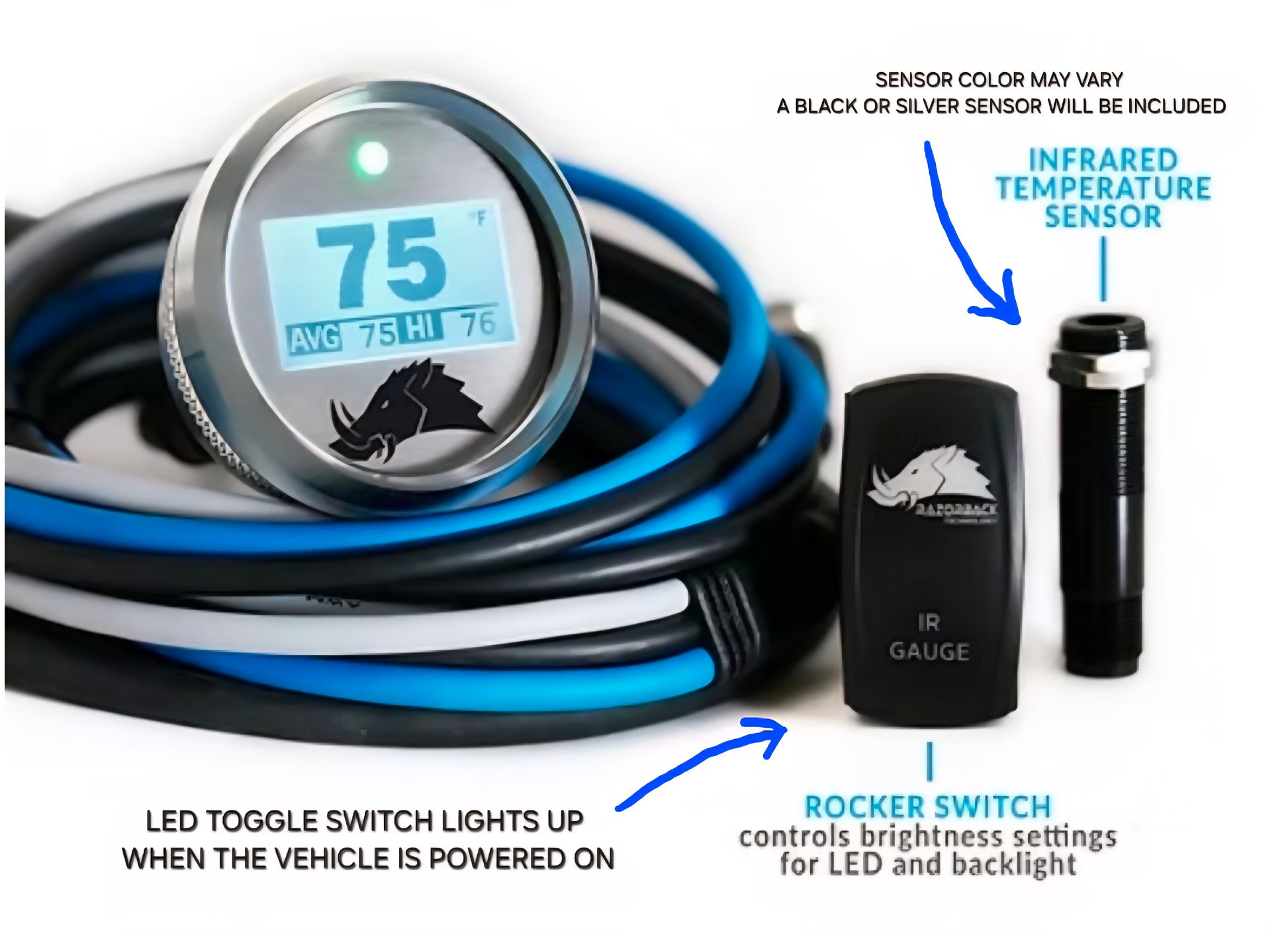

What’s Included – Complete Plug-and-Play Kit:
This is a complete Razorback 3.2 system, ready to install.
- ✔ Razorback 3.2 Dimmable Temperature Gauge
- ✔ Medical-grade Thermally Compensated Infrared Belt Sensor
- ✔ Full Wiring Harness
- ✔ Toggle Switch (menu navigation & dimming control)
- ✔ Installation Instructions

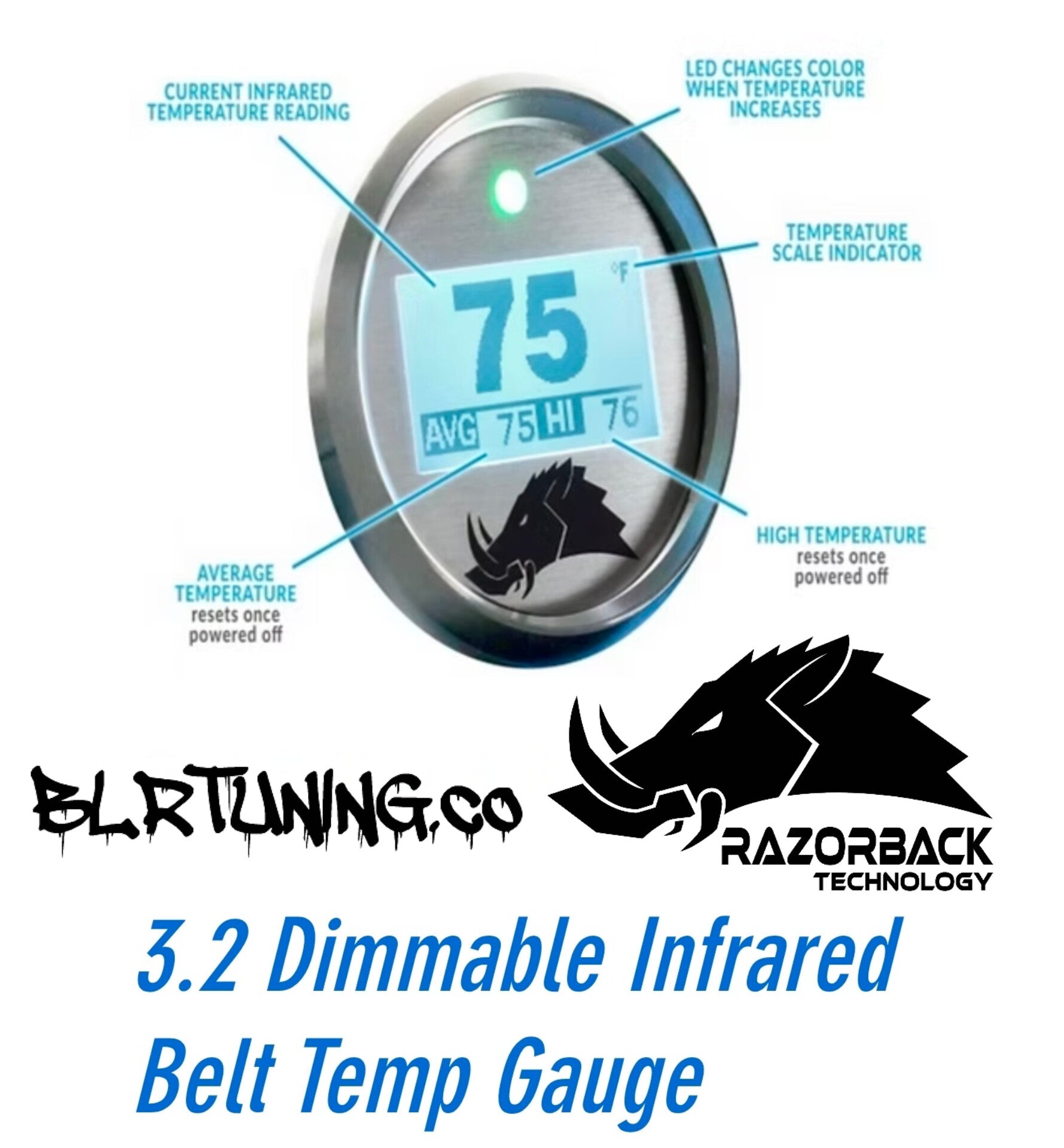

Razorback 3.2 Gauge Features
- • Patented Infrared Technology – Reads true belt surface temperature
- • Thermally Compensated Sensor – Accurate readings regardless of ambient heat
- • Anti-Glare LCD Display – Easy to read in sunlight
- • Displays Real-Time, Average, and Peak Temperatures
- • Scratch-Resistant Faceplate
- • Programmable Multicolor LED Alerts
LED STATUS:
-
Green: Normal operating range
-
Yellow: Elevated temperature (around 200°F)
-
Red: Critical temperature (around 225°F)
- • 5-Level Dimmable Display & LEDs

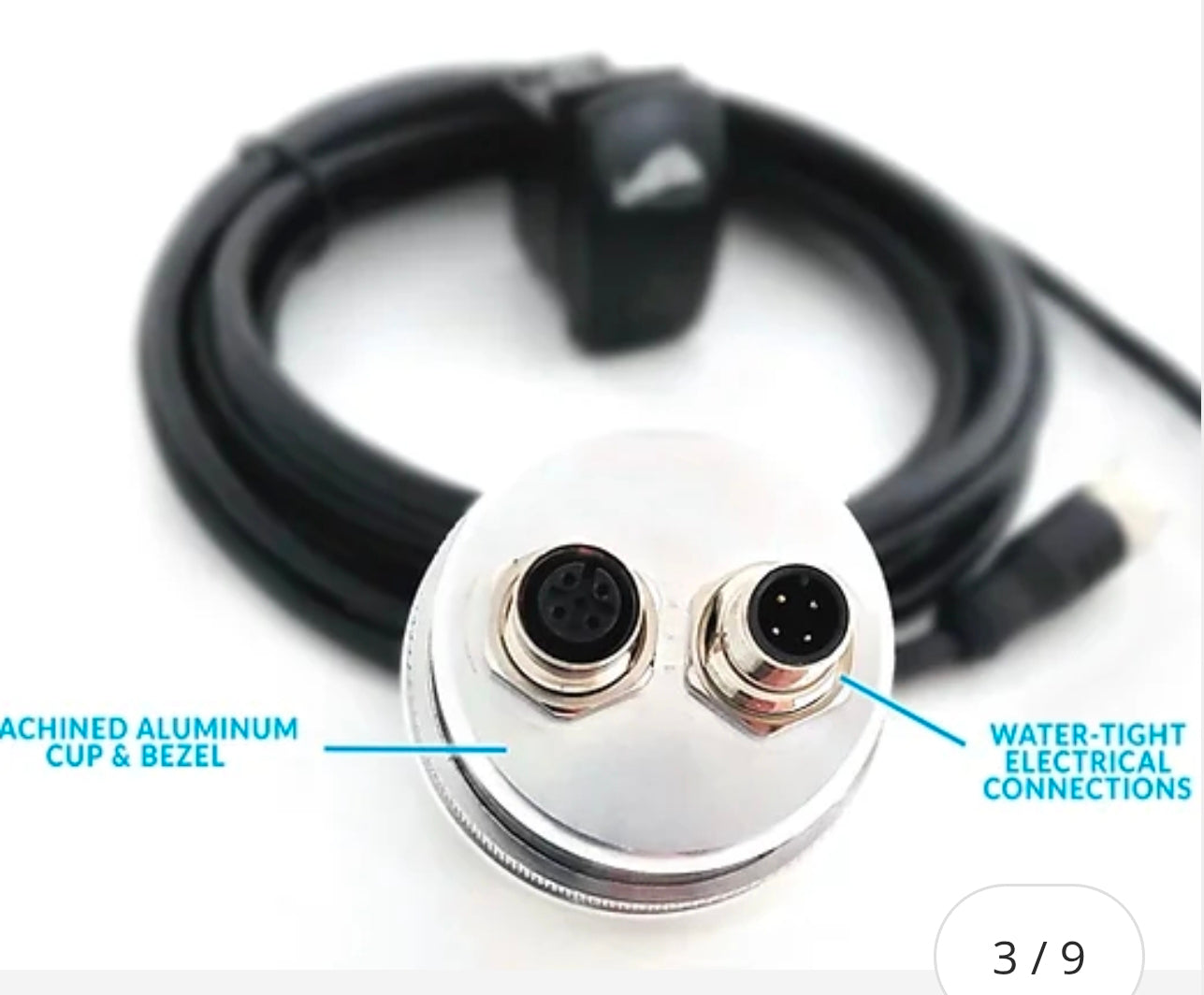

- • Steel & Aluminum Construction
- • Water-Resistant
- Gauge face: IP65
- Sensor & connections: IP67
Mounting & Size Information:
- • Gauge Diameter: 2 1/16" (52mm)
- • Required Mounting Hole: Approx. 2.05" (52.7mm)
- • Fits any standard 2 1/16" gauge cup or mount
Using Your Own Mount?
If you are not purchasing one of our Razorback gauge pod mounts, your mounting system must accept a 2 1/16" (52.7mm) gauge with a corresponding 2.05" hole diameter.

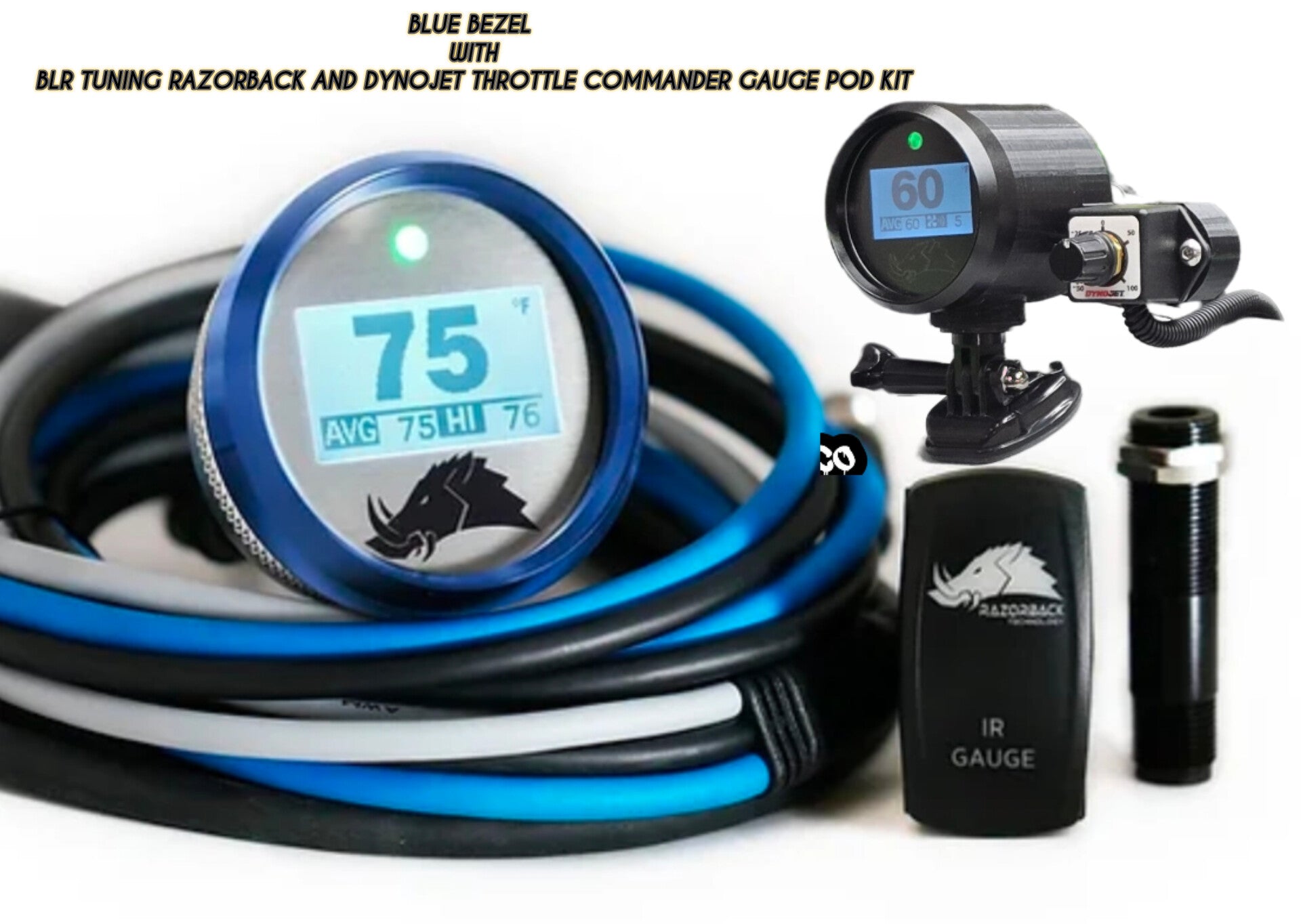

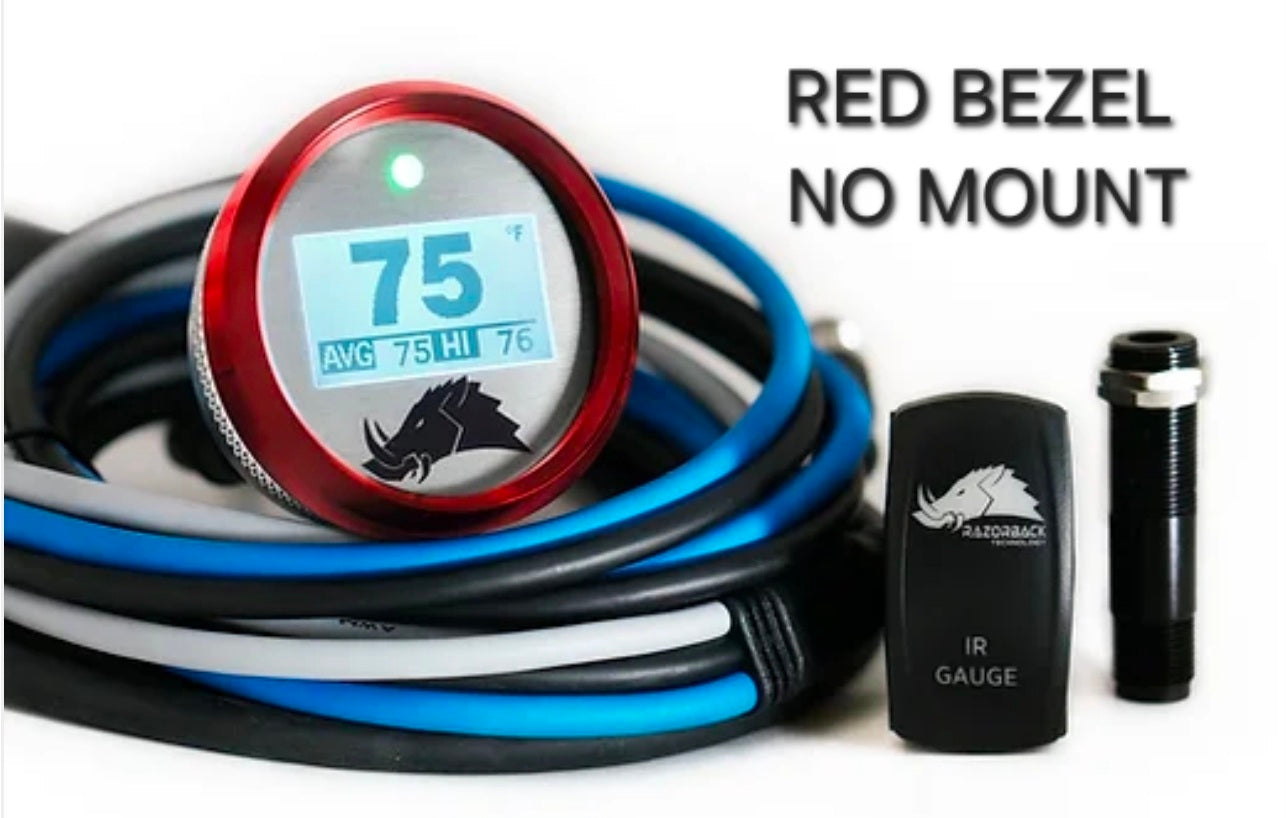

Anodized Bezel Options:

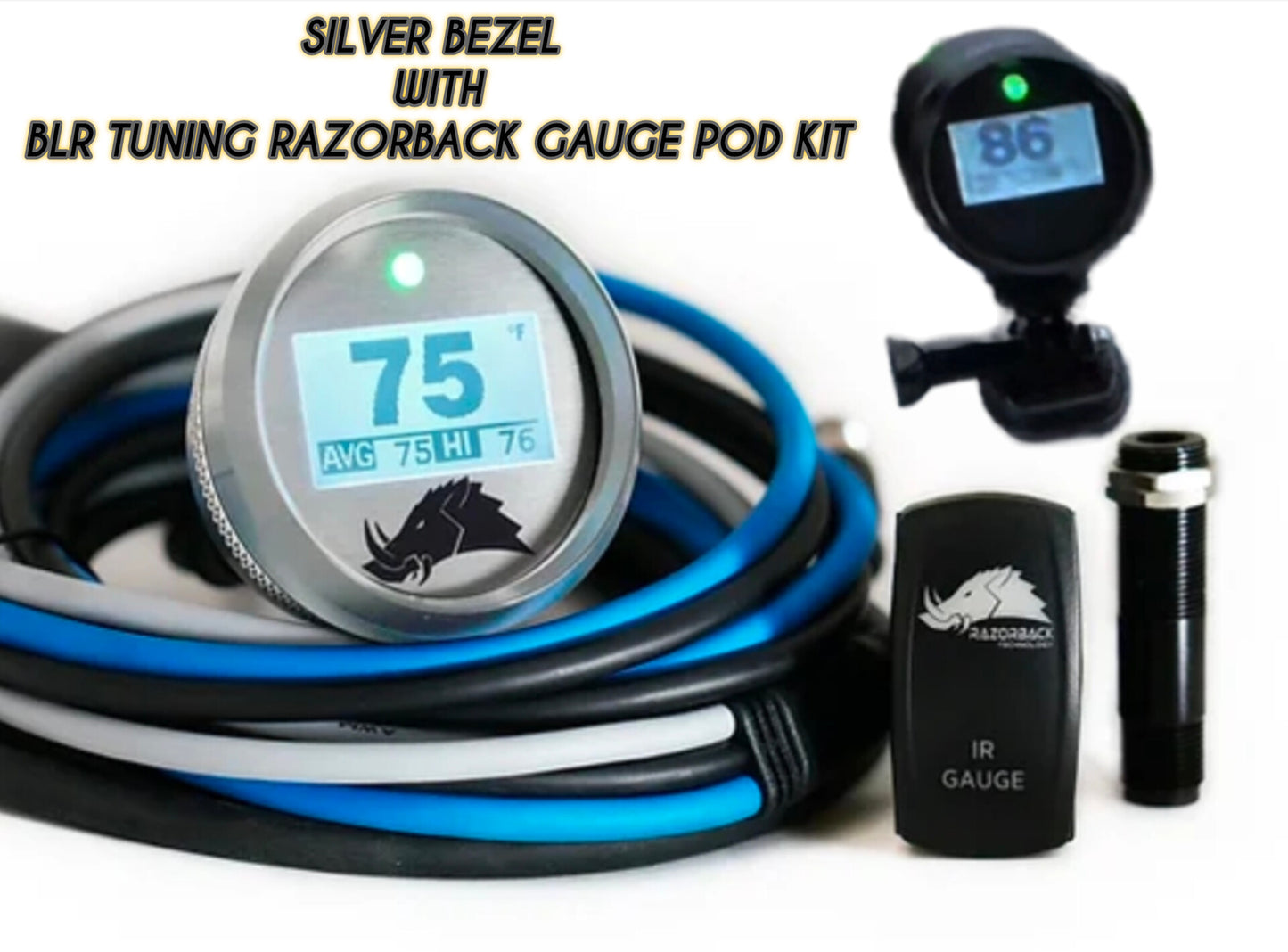

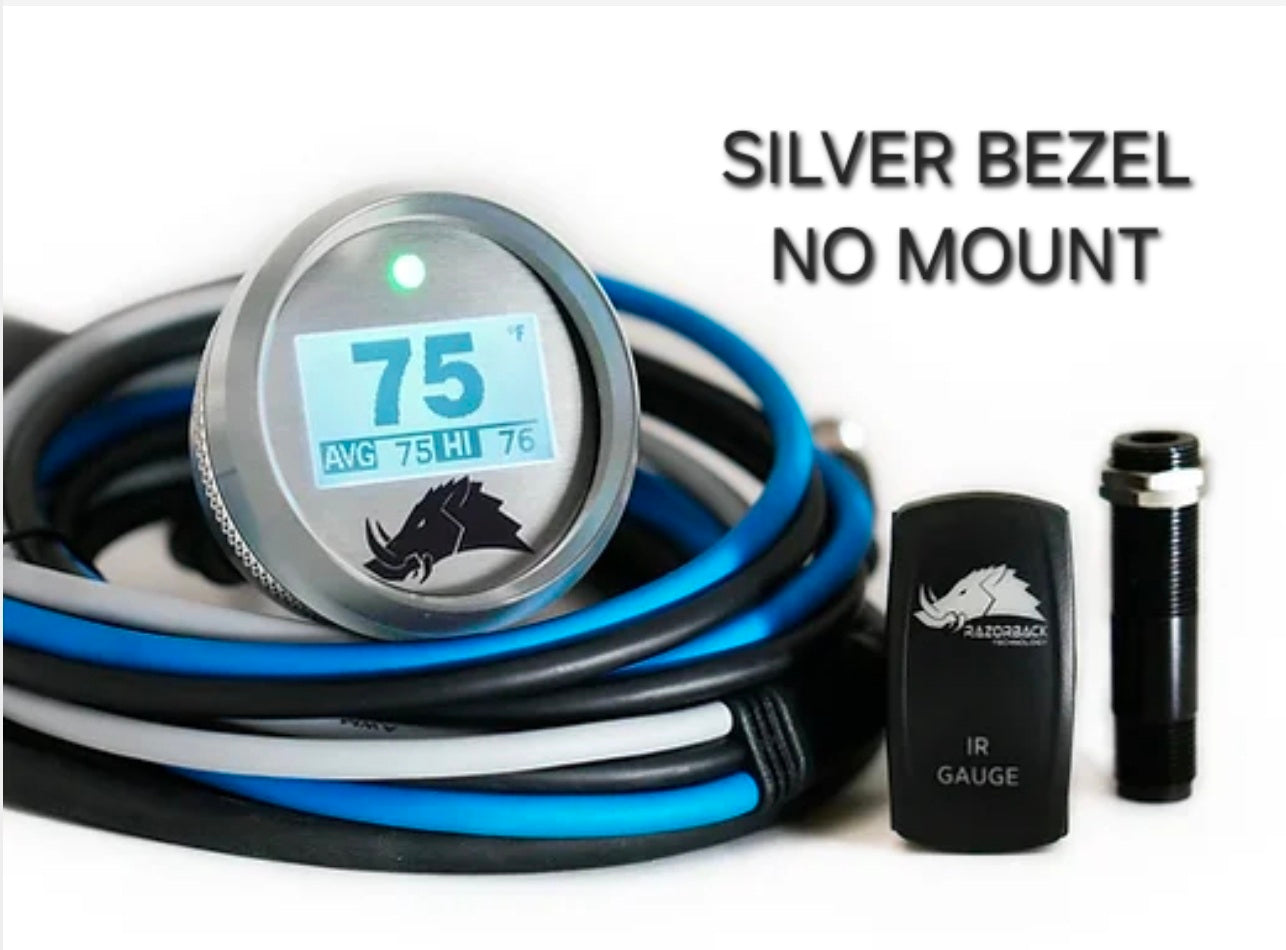

The gauge comes standard with a Silver bezel. (THE RIM AROUND THE FRONT OF THE GAUGE)

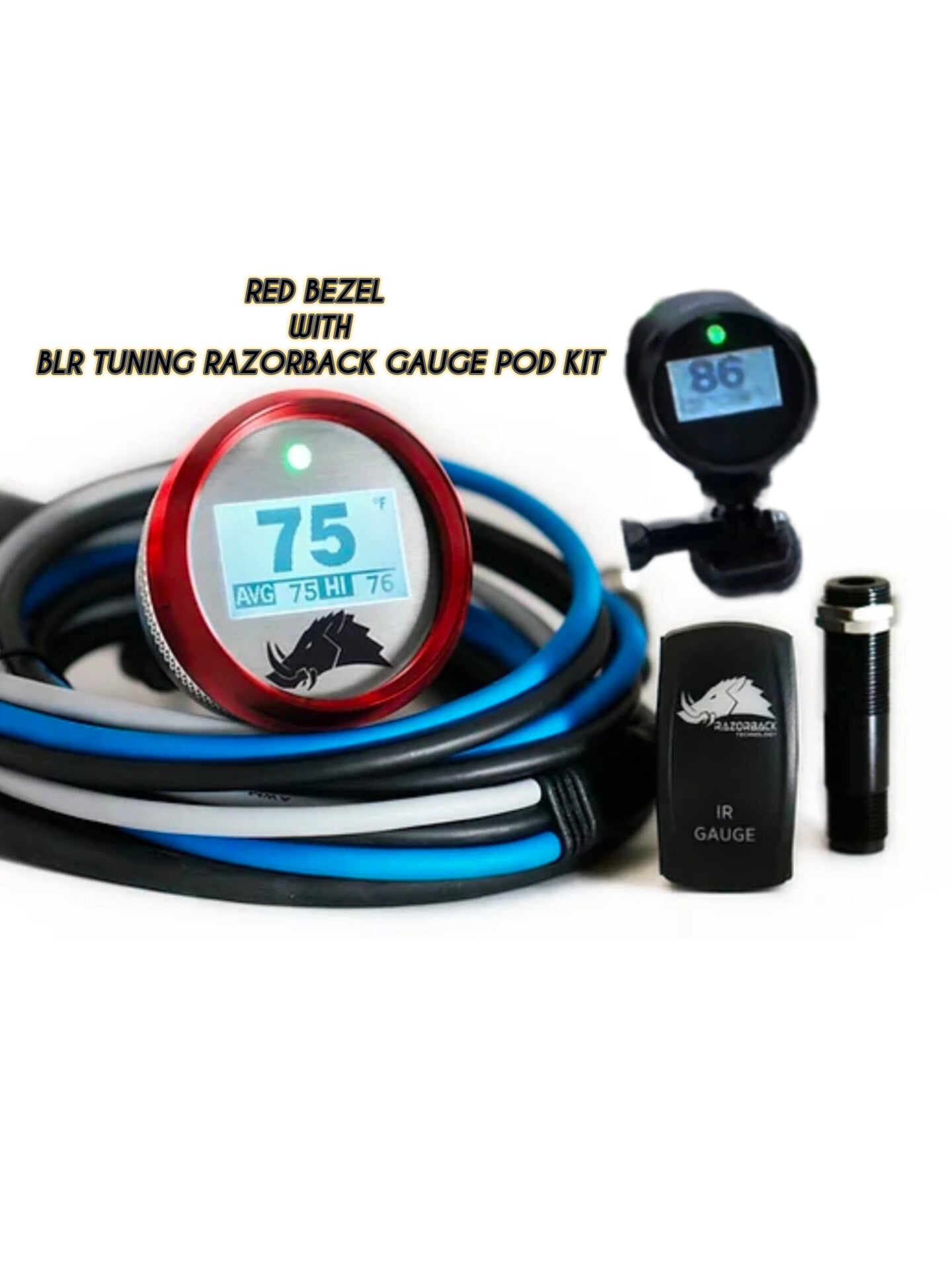

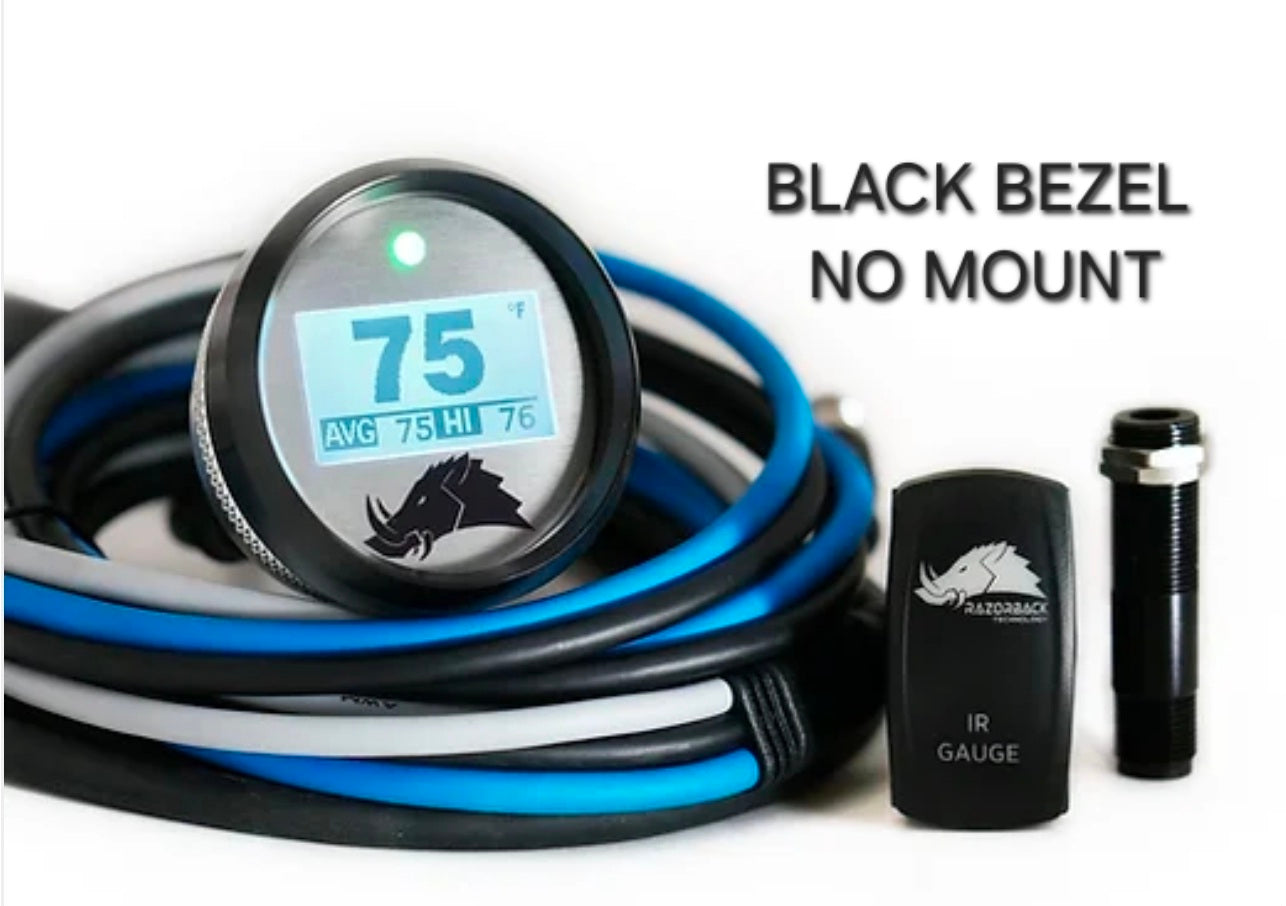

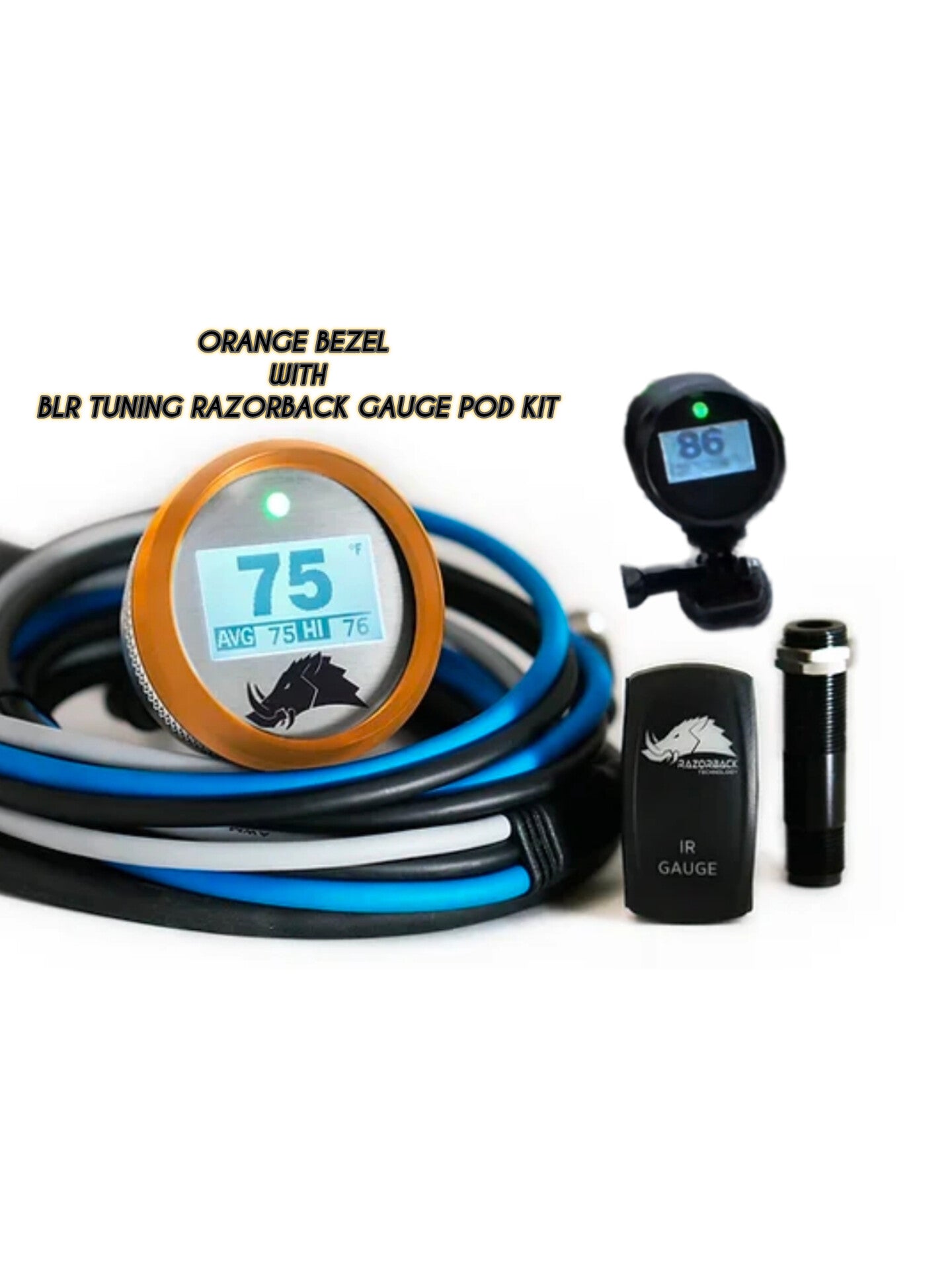

Optional anodized ALUMINUM bezel upgrades:

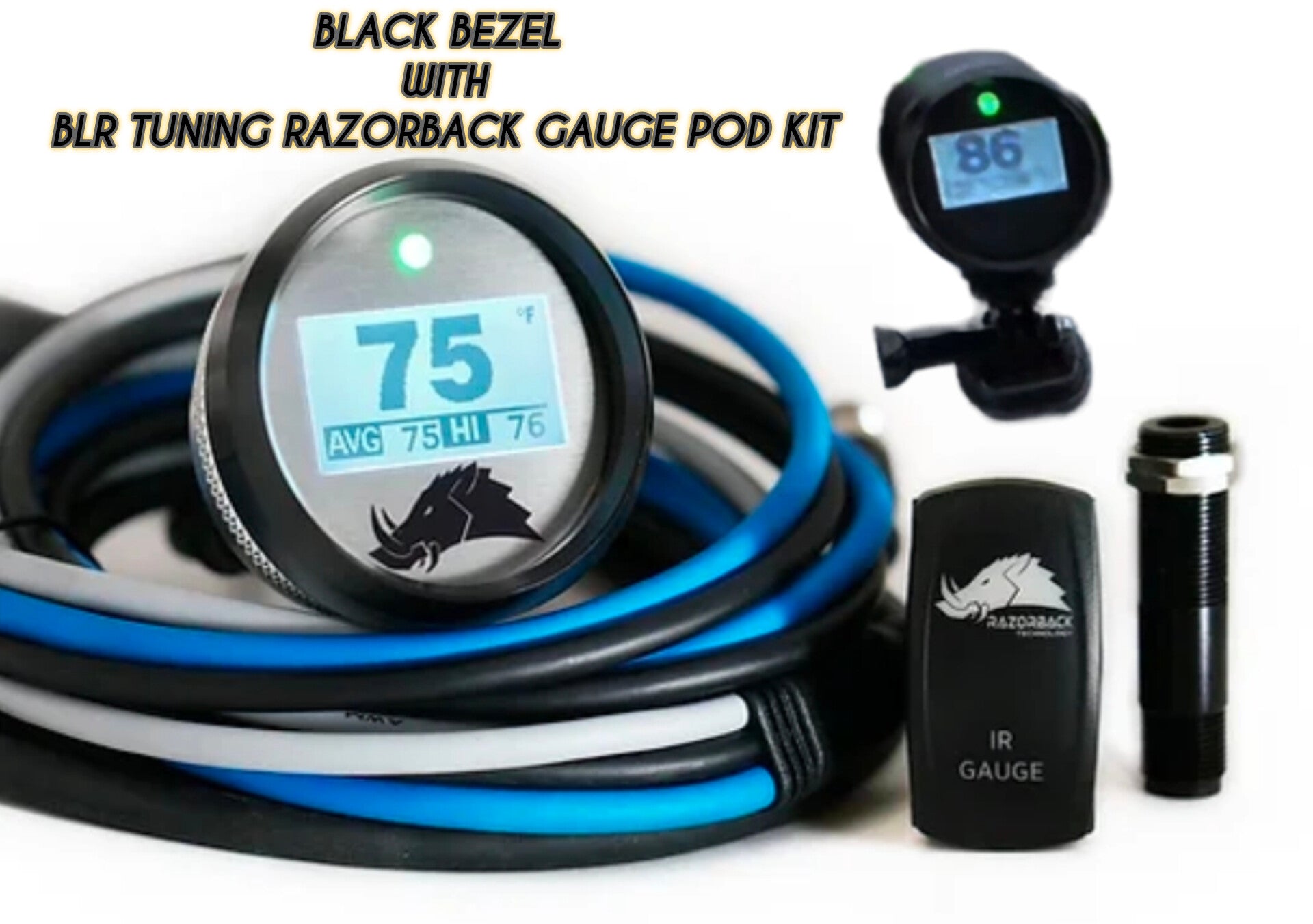

- • Black
- • Red

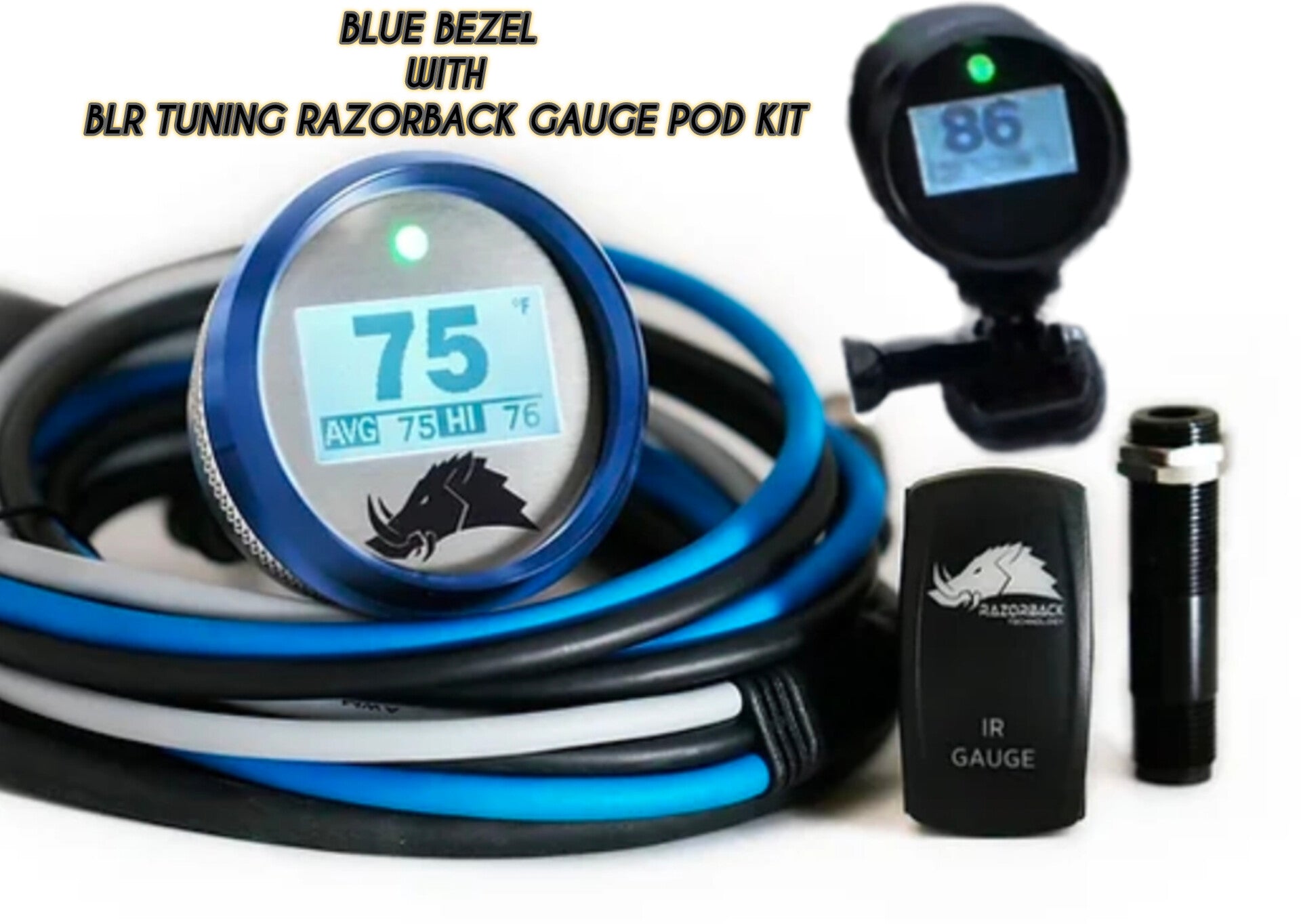

- • Blue

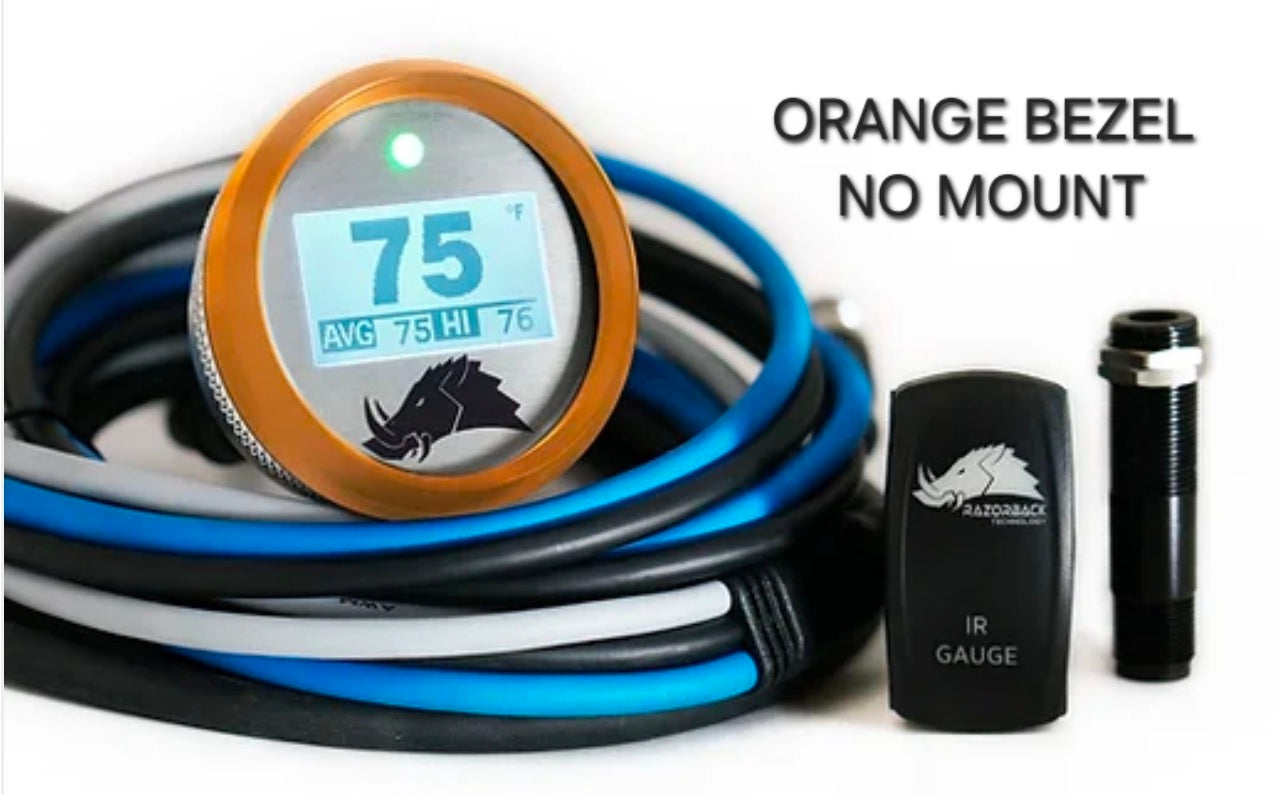

- • Orange

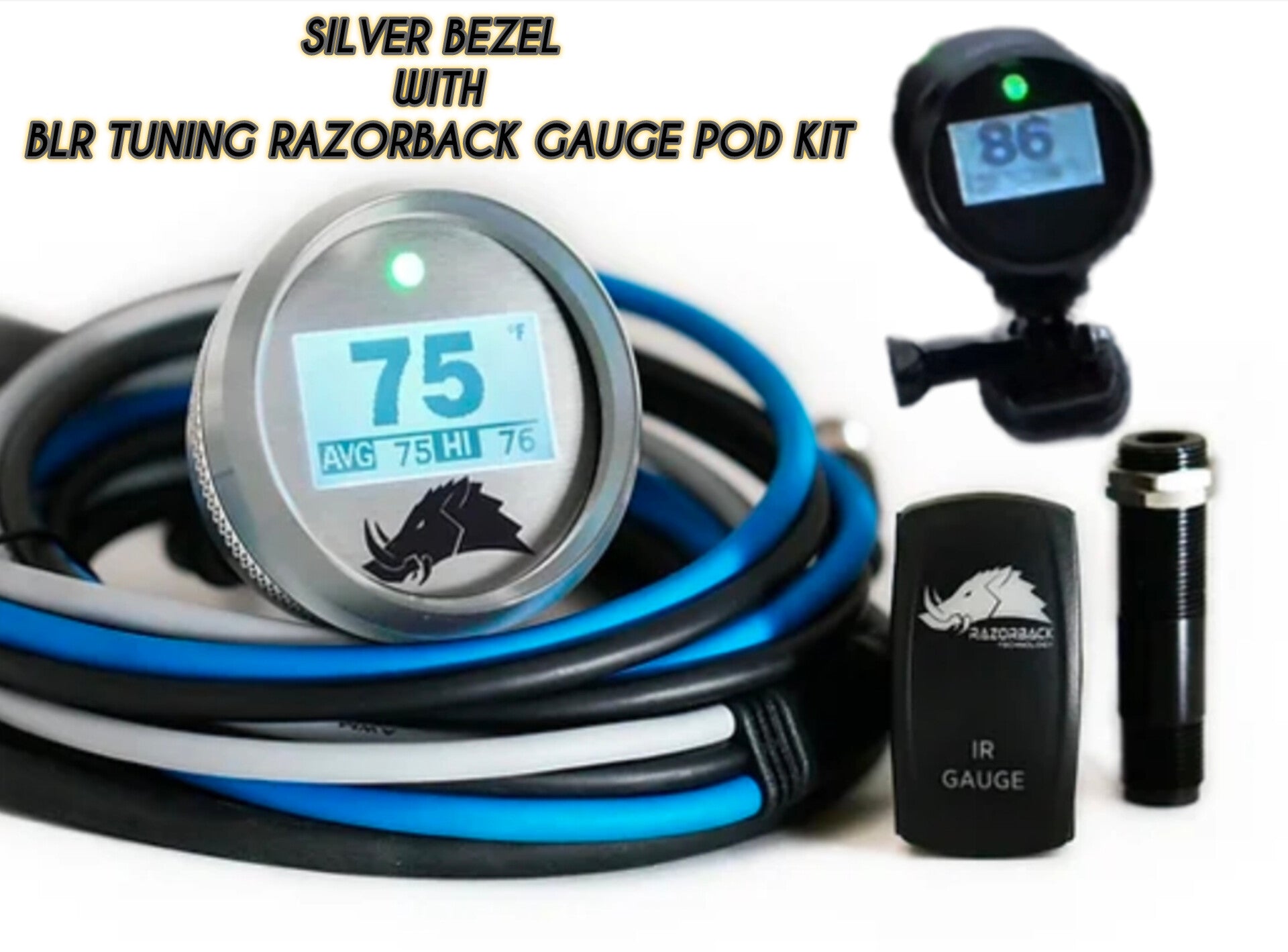

Optional Razorback Gauge Pod Mounting Systems:

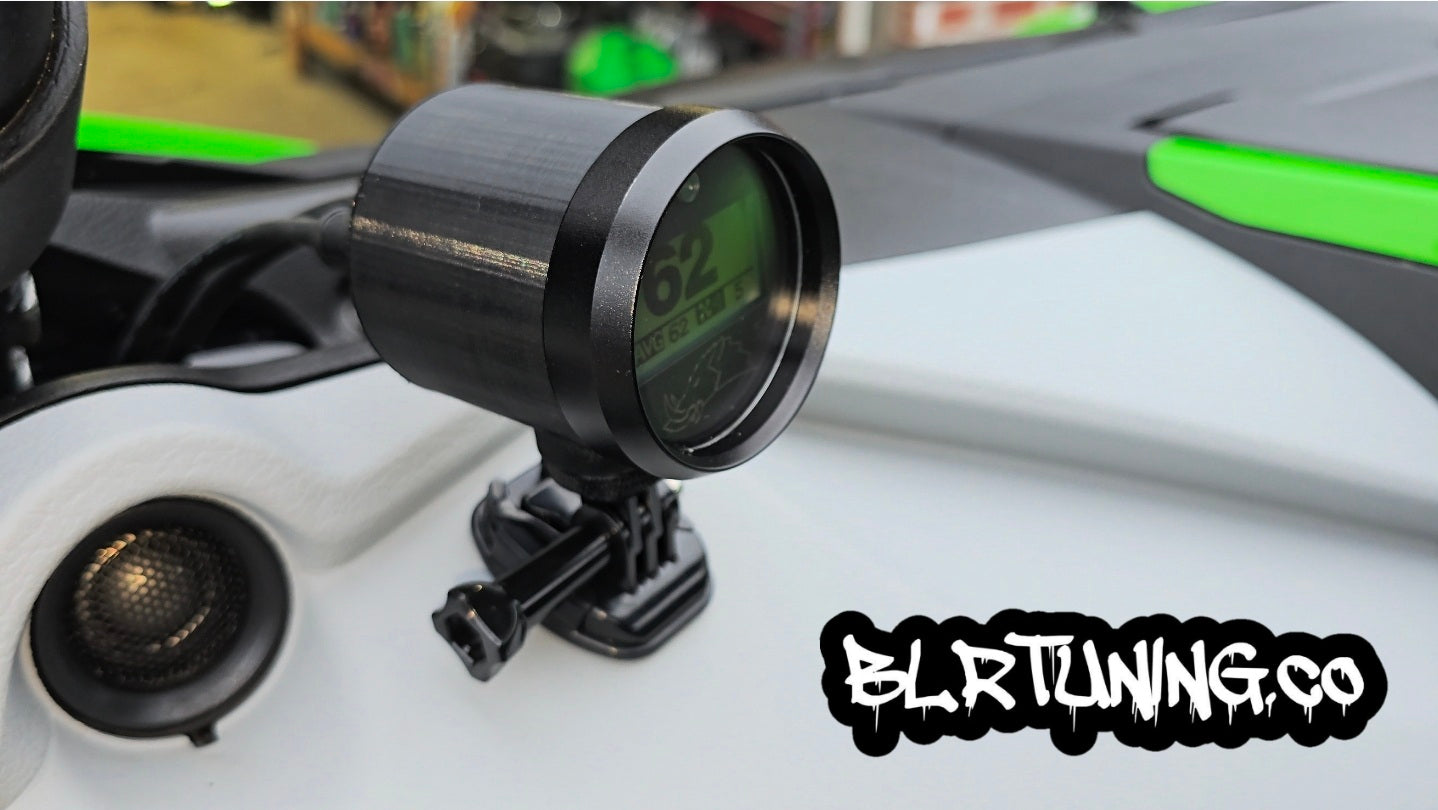

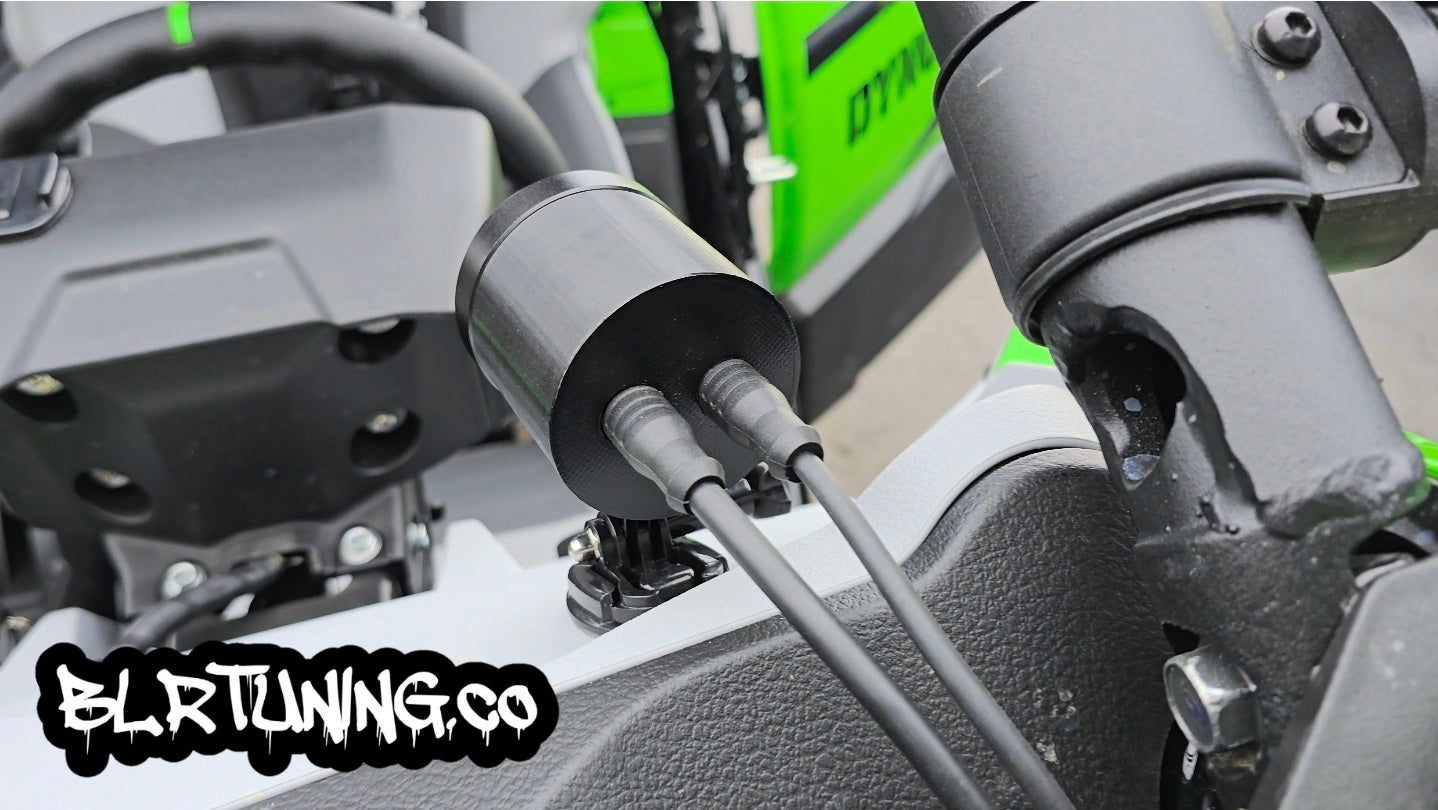

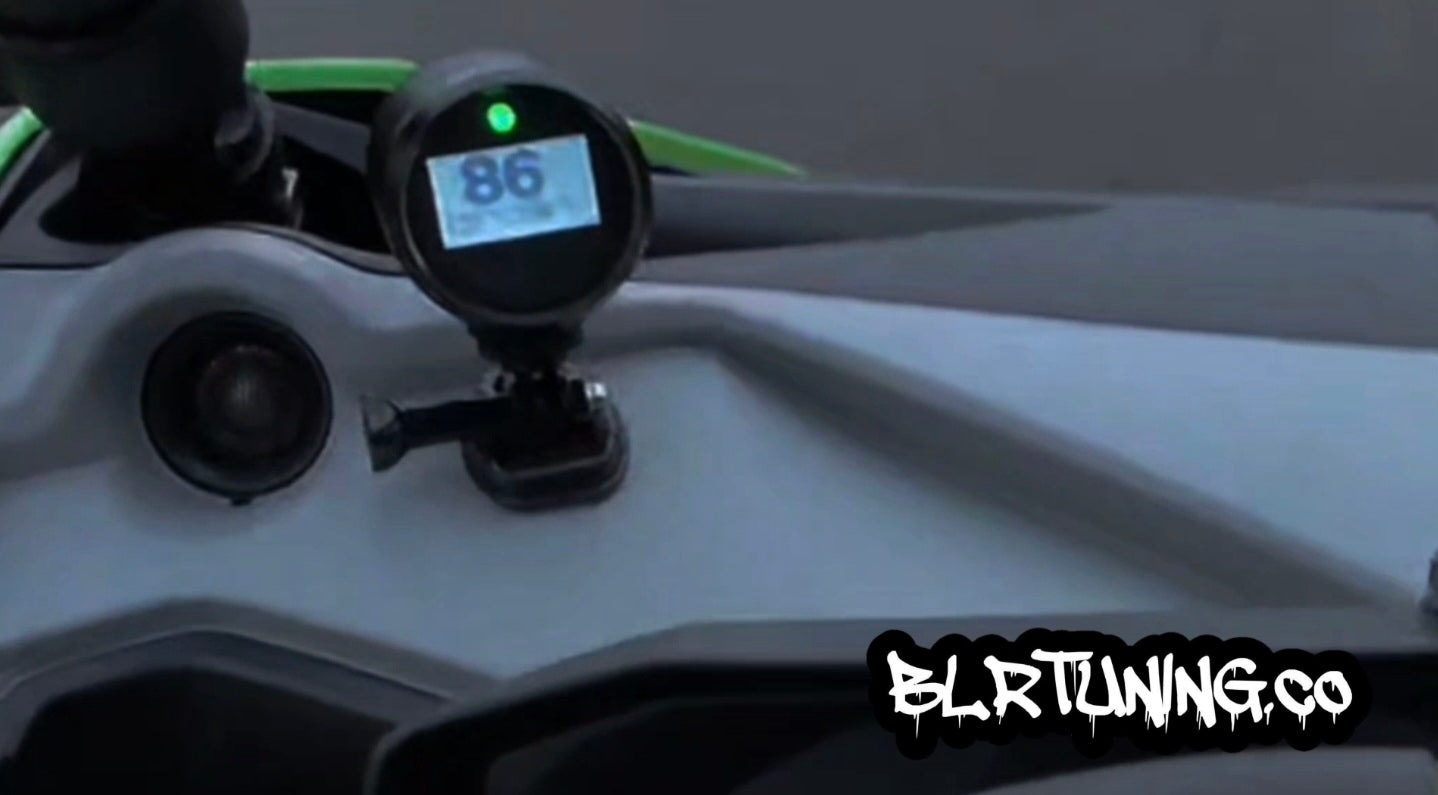

For a clean, professional installation, you may add one of our Razorback Gauge Pod Mounts, designed to mount to any flat surface. Holds the gauge in a pressure fit pod.
Available options:

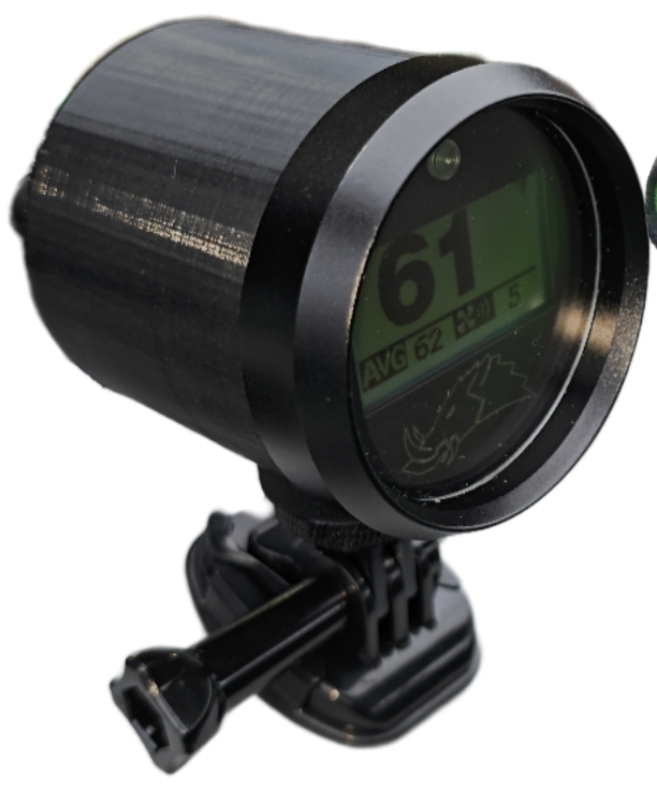

- • Razorback Gauge Pod Mount (Mounts gauge only)

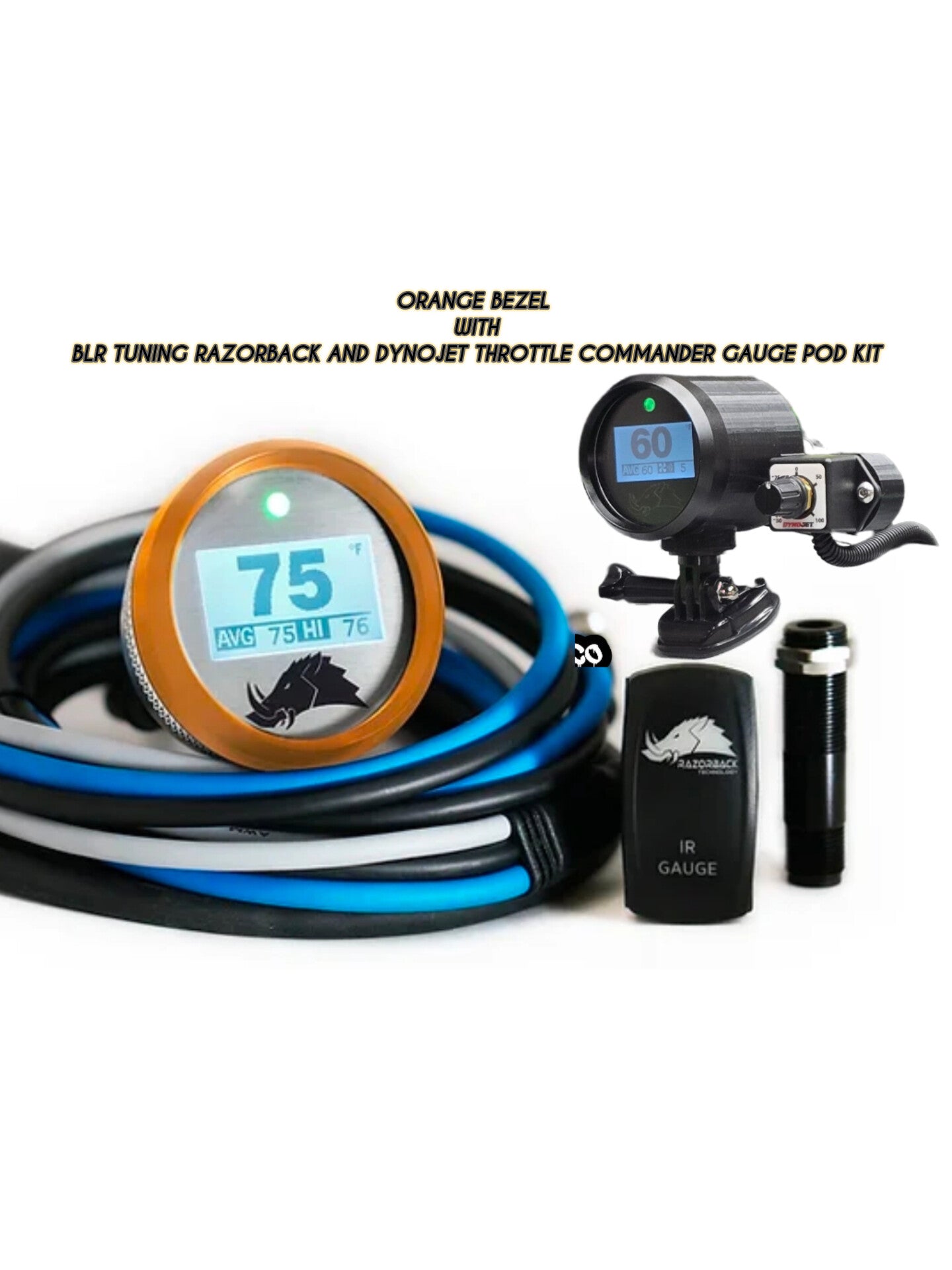

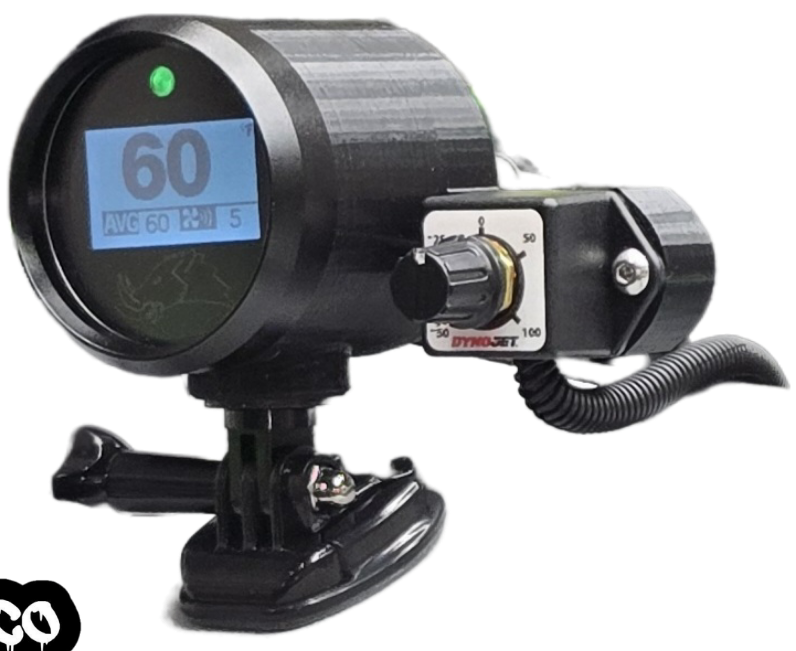

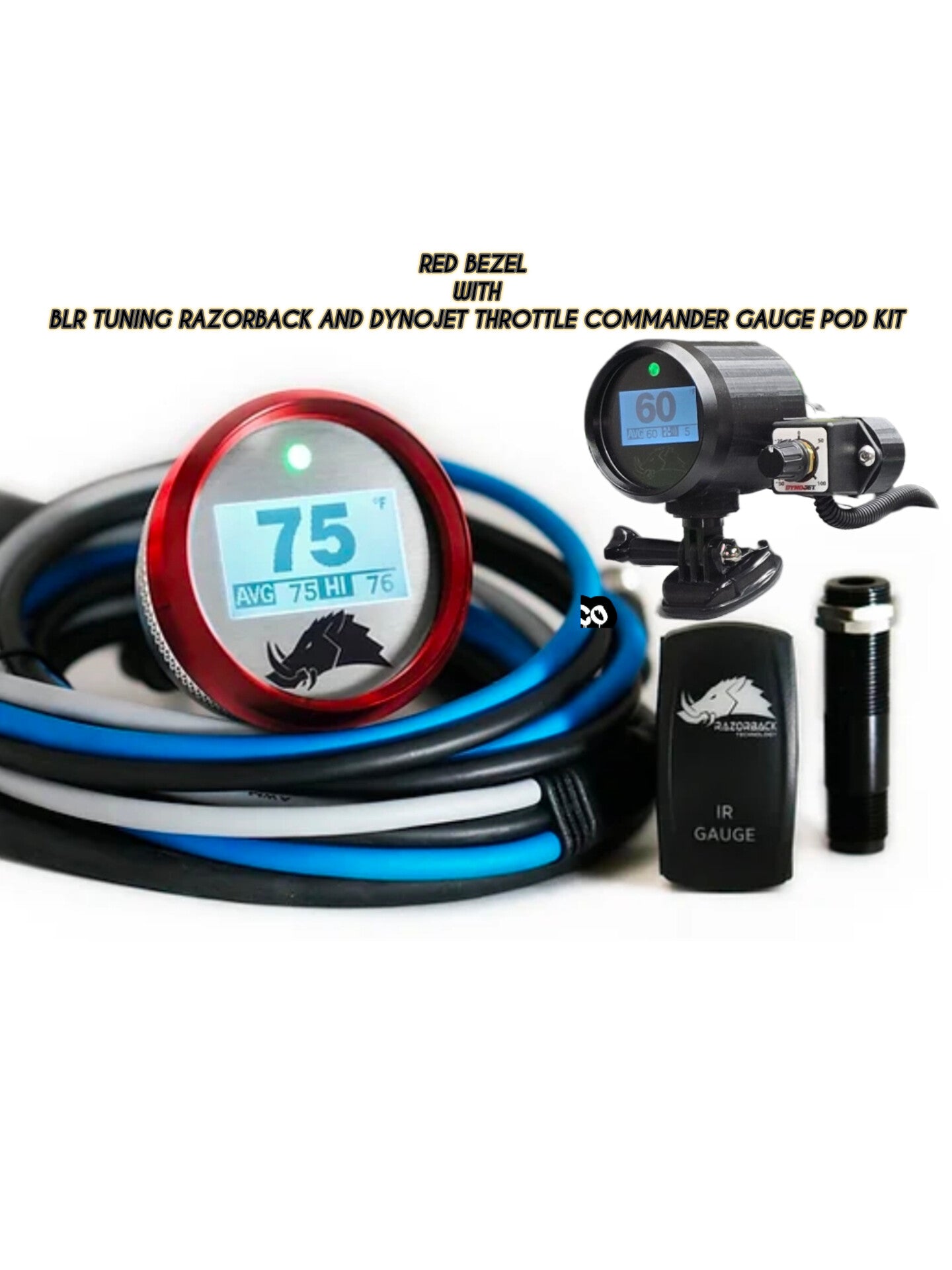

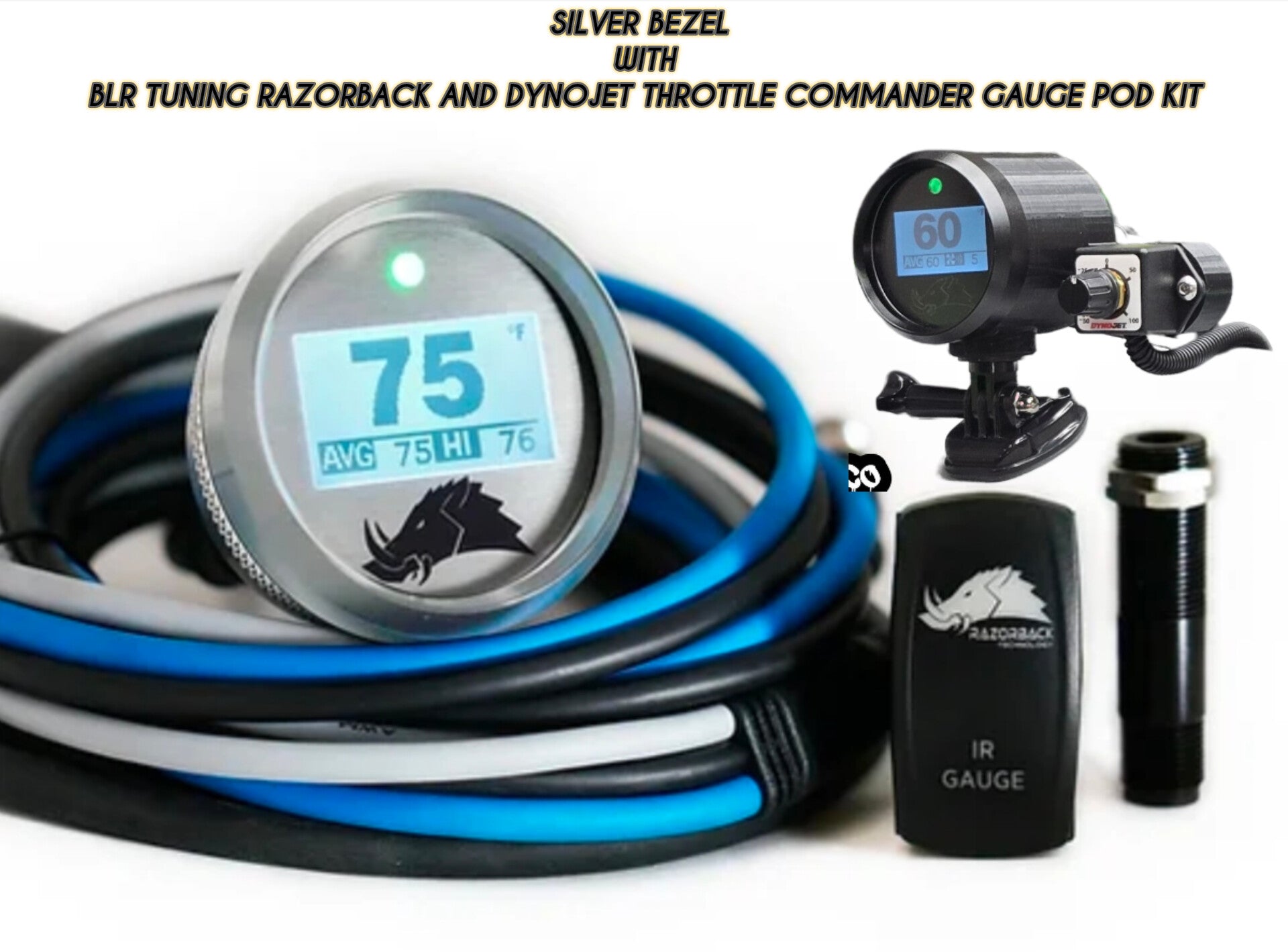

- • Razorback Gauge Pod + DYNOJET Throttle Commander Mount
Allows both the Razorback gauge and DYNOJET Throttle Commander to mount cleanly in one location
Installation Notes:
- • Designed to run on accessory power so the gauge powers on automatically with the vehicle
- • Toggle switch controls menu navigation and brightness
- • Toggle switch can be discreetly mounted or installed inside the glove box
- • Requires drilling a ½-inch hole in the CVT housing plastic
- • Infrared sensor must be aimed directly at the center of the CVT belt
- • Sensor reads actual belt surface temperature, not air temperature
Why You Need This Gauge:
- • Prevent belt overheating
- • Extend CVT belt lifespan
- • Know exactly when to back off the throttle
- • Avoid costly breakdowns and premature belt failure
- • Proven solution trusted across high-performance CVT platforms
This is real temperature data, not a guess.
Authorized Dealer:
BLR TUNING is proud to announce our partnership with official RAZORBACK products.
We are a licensed Razorback dealer, ensuring you receive authentic components, full support, and proper documentation.
Protect your investment. Monitor what matters.
Upgrade your Ride with the Razorback 3.2 CVT Belt Temperature Gauge Kit and ride smarter every mile.
Razorback 3.2 CVT Exhaust Fan Compatibility:

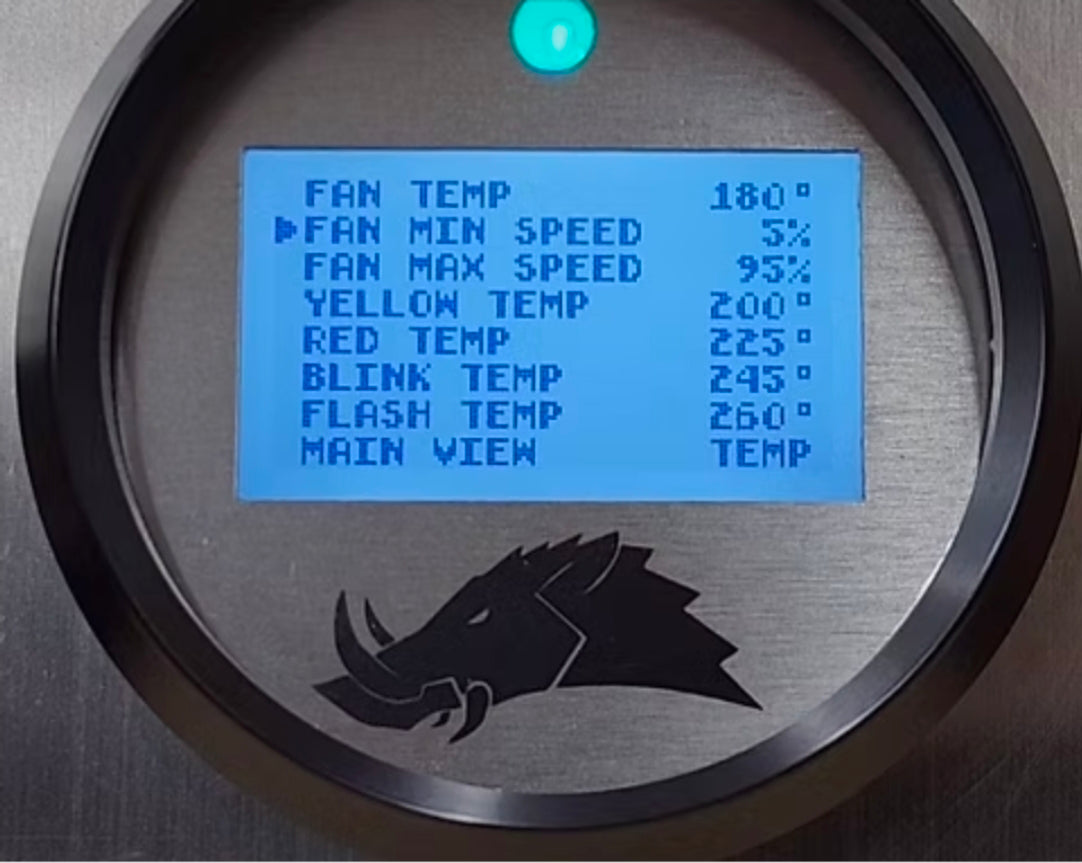

The Razorback 3.2 CVT Belt Temperature Gauge is fan-control capable. This gauge features a dedicated output that allows it to directly control and power a Razorback CVT exhaust fan for side-by-side applications. When paired together, the gauge can automatically activate the fan based on CVT belt temperature, helping manage heat more effectively during hard riding, slow technical terrain, or high ambient temperatures.
Note: The Razorback CVT exhaust fan is sold separately and is not included with the 3.2 gauge kit.
Infrared sensor may vary in color - it may come in silver or black. What ever is in stock
Shipping is already configured. There is no extra charge at checkout. We ship anywhere in the USA.
Some gauge options may be shipped direct from RazorBack. BLR TUNING mounting options will be shipped directly from BLR TUNING. You may get 2 packages when you order. Shipping times are usually 8 to 14 business days.
DYNOJET THROTTLE COMMANDER SOLD SEPARATELY - HERE
ALREADY HAVE A RAZERBACK GAUGE? WE DO OFFER OUR RAZORBACK GAUGE POD OPTIONS SEPARATELY - HERE
