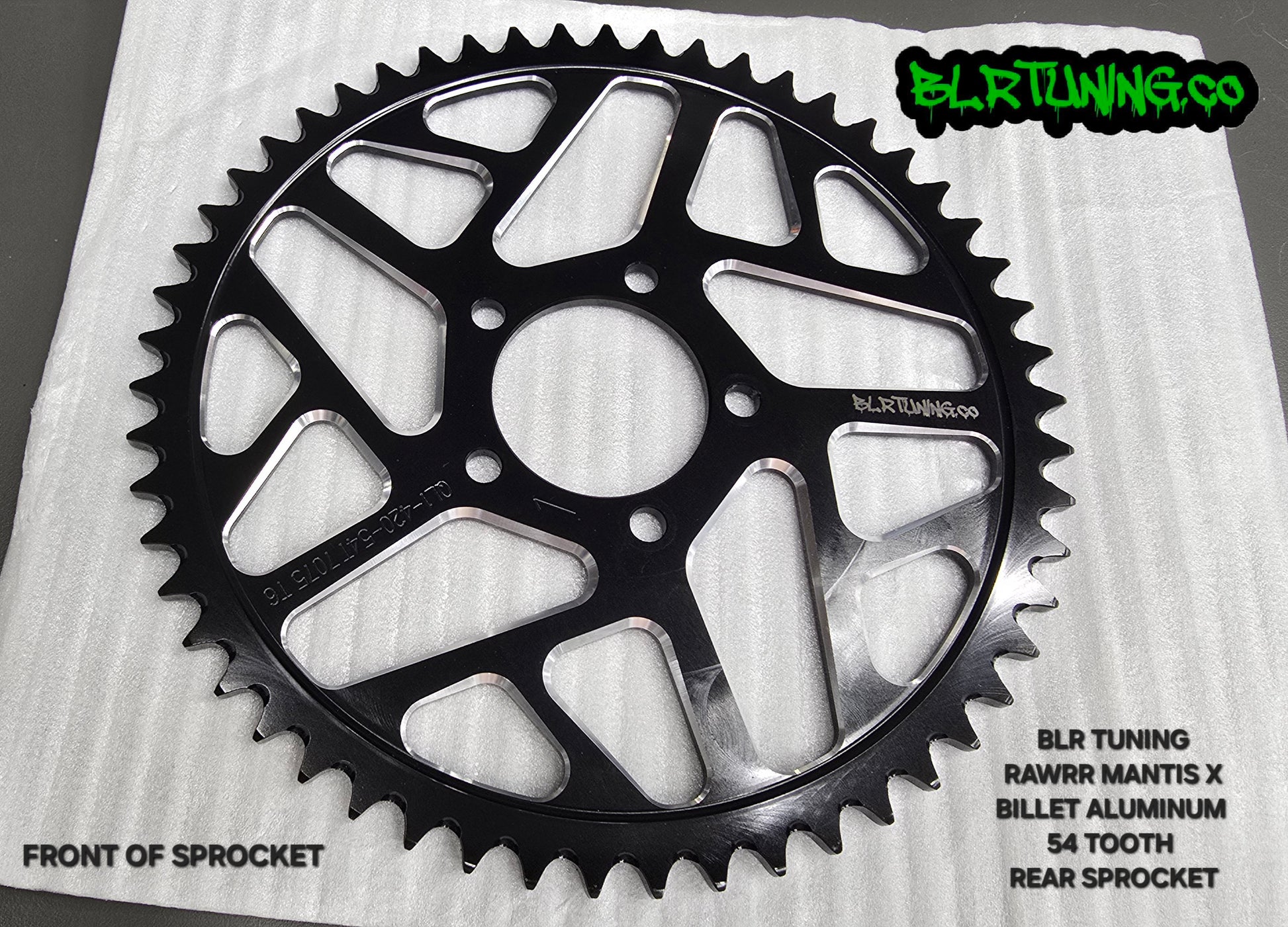

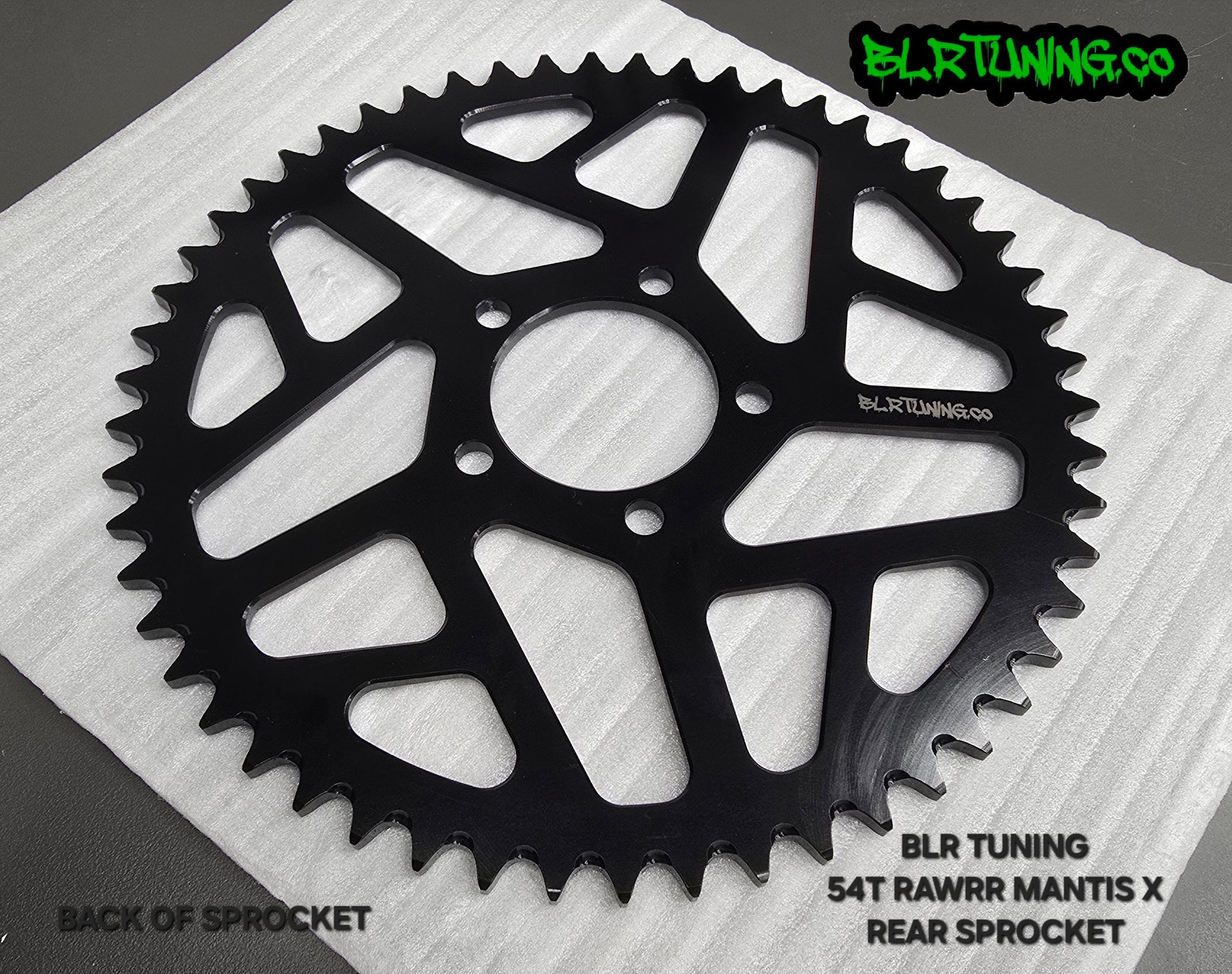

RAWRR MANTIS X 54 TOOTH REAR SPROCKET 7075 T6 ALUMINUM ANODIZED BLACK BY BLR TUNING

RAWRR MANTIS X ELECTRIC DIRT BIKE 54 Tooth Aluminum Rear Sprocket by BLR TUNING

Upgrade your Rawrr Mantis X 72V Electric Dirt Bike with this high-performance 54T rear sprocket by BLR TUNING. Precision CNC-machined from ultra-strong and lightweight 7075 T6 billet aluminum, this sprocket is anodized black for durability and a sleek, aggressive look.

Designed for 420 pitch chains—just like the stock setup—this sprocket is a direct upgrade from the factory 51 tooth sprocket. By increasing to 54 teeth, you’ll gain more torque, stronger acceleration, and snappier throttle response, while sacrificing a small amount of top speed. In our shop test bike "Yoshi," with a 220 lb rider, we still hit 50 MPH...!!! It pulls wheelies with ease. Be ready for some serious torque!

Installation Notes:

• This sprocket is compatible with the stock 420 pitch chain.
• To use the stock chain length, you'll need to modify the rear brake caliper bracket to allow more forward wheel travel—this is a simple, no-cost mod. (See our photo for reference.)
• Alternatively, you can install a longer aftermarket chain, or add 2 extra 420 pitch links to your stock chain.

Torque Specs & Installation Requirements:

• Sprocket Bolts: 33 ft-lbs
• Brake Caliper Mount Bolts: 18 ft-lbs
• Rear Axle Nut: 63 ft-lbs

Required Installation Products:

• Medium-strength blue thread locker must be used on the sprocket bolts and brake caliper mount bolts.
• Do NOT use thread locker on the axle nut.
• Synthetic grease must be applied to the rear axle during reassembly.

We offer blue thread locker at a discounted price as an optional add-on with this sprocket—make sure you're fully equipped for a secure and reliable install.

Upgrade smart. Ride hard. Torque up with BLR TUNING.

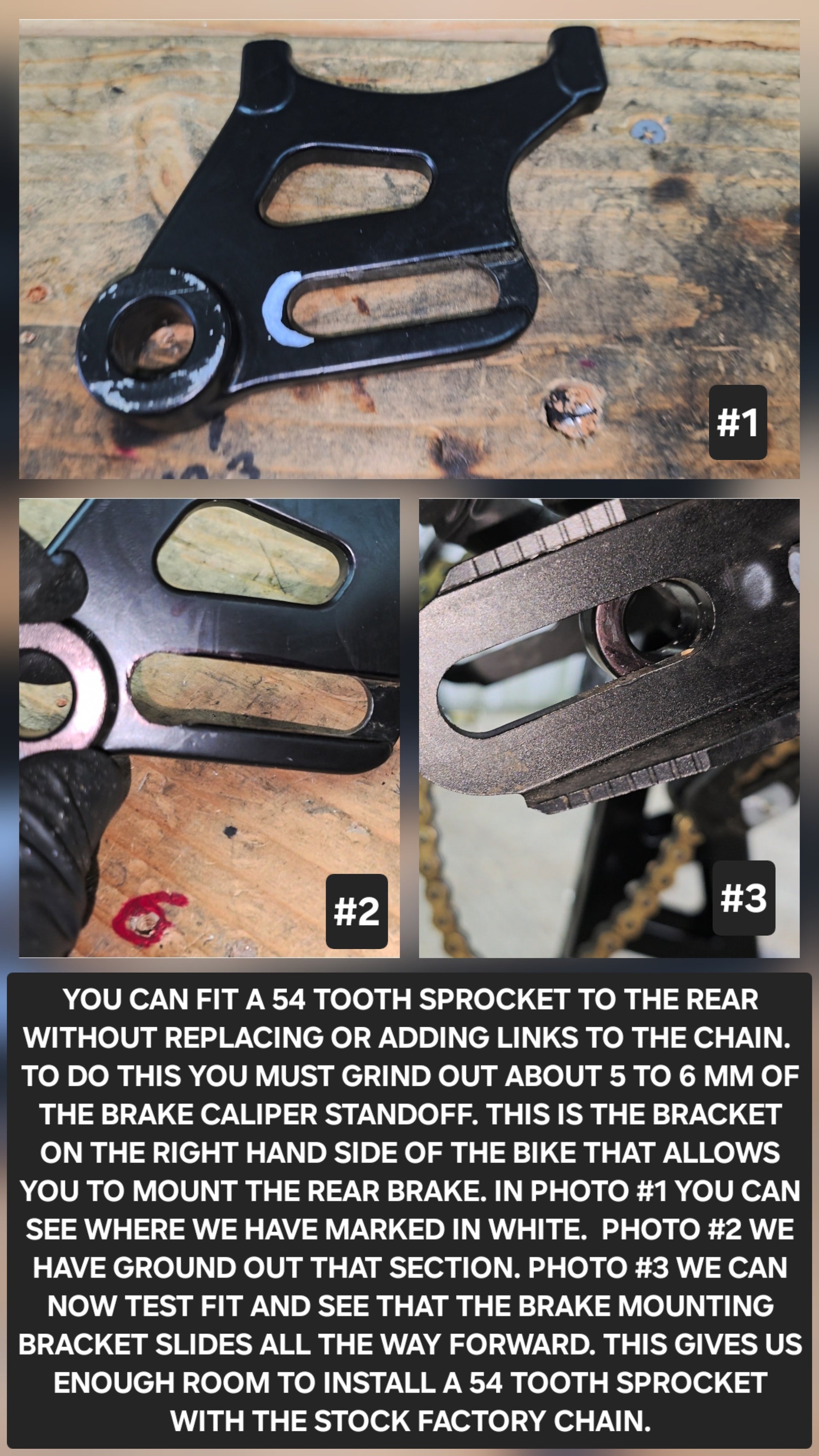

THE FOLLOWING IMAGE SHOWS HOW TO MODIFY THE REAR BRAKE CALIPER BRACKET SO YOU CAN USE THE STOCK CHAIN AND FIT UP TO A 54T SPROCKET -
