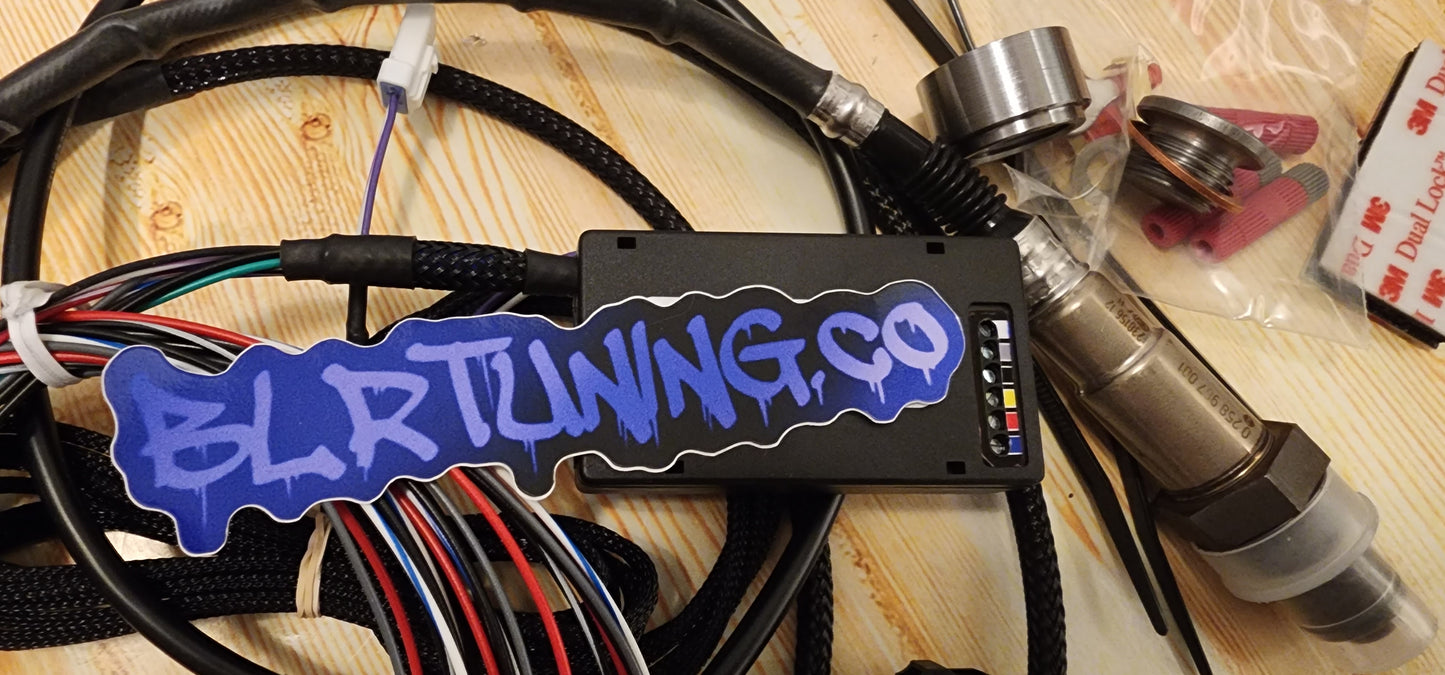

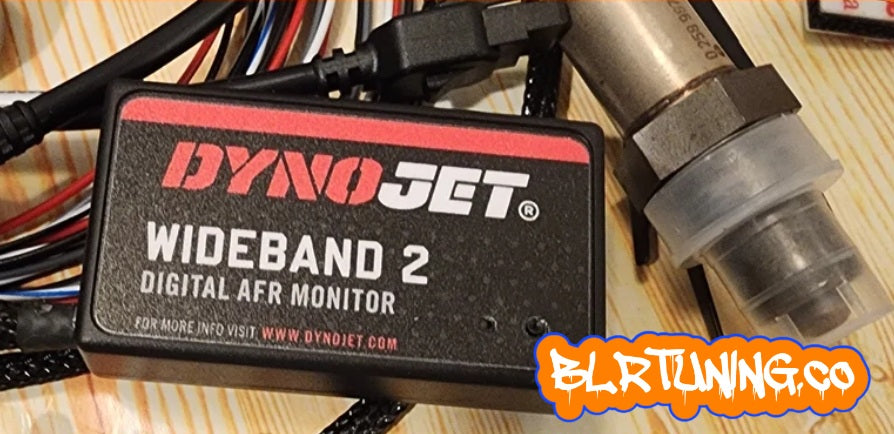

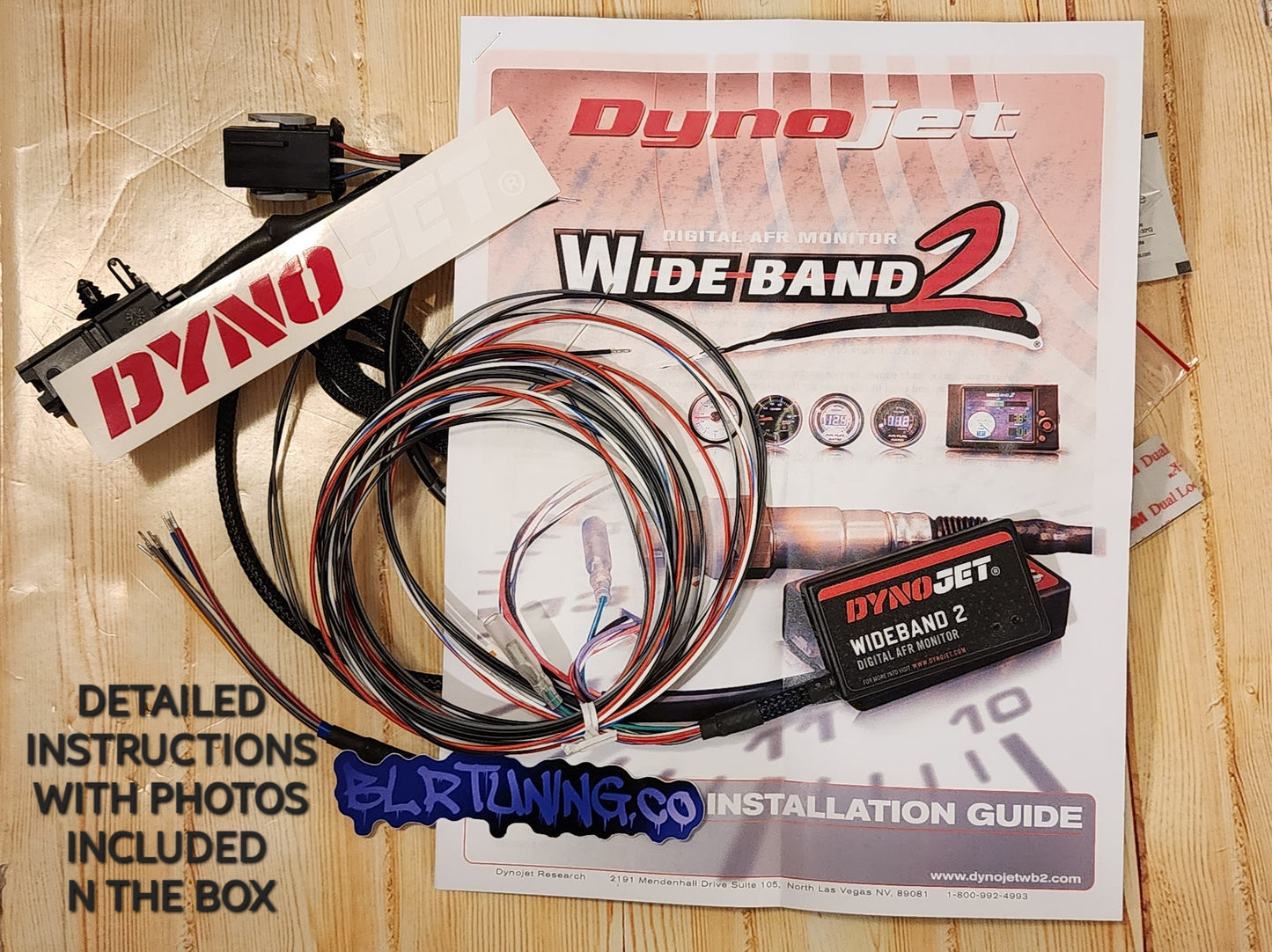

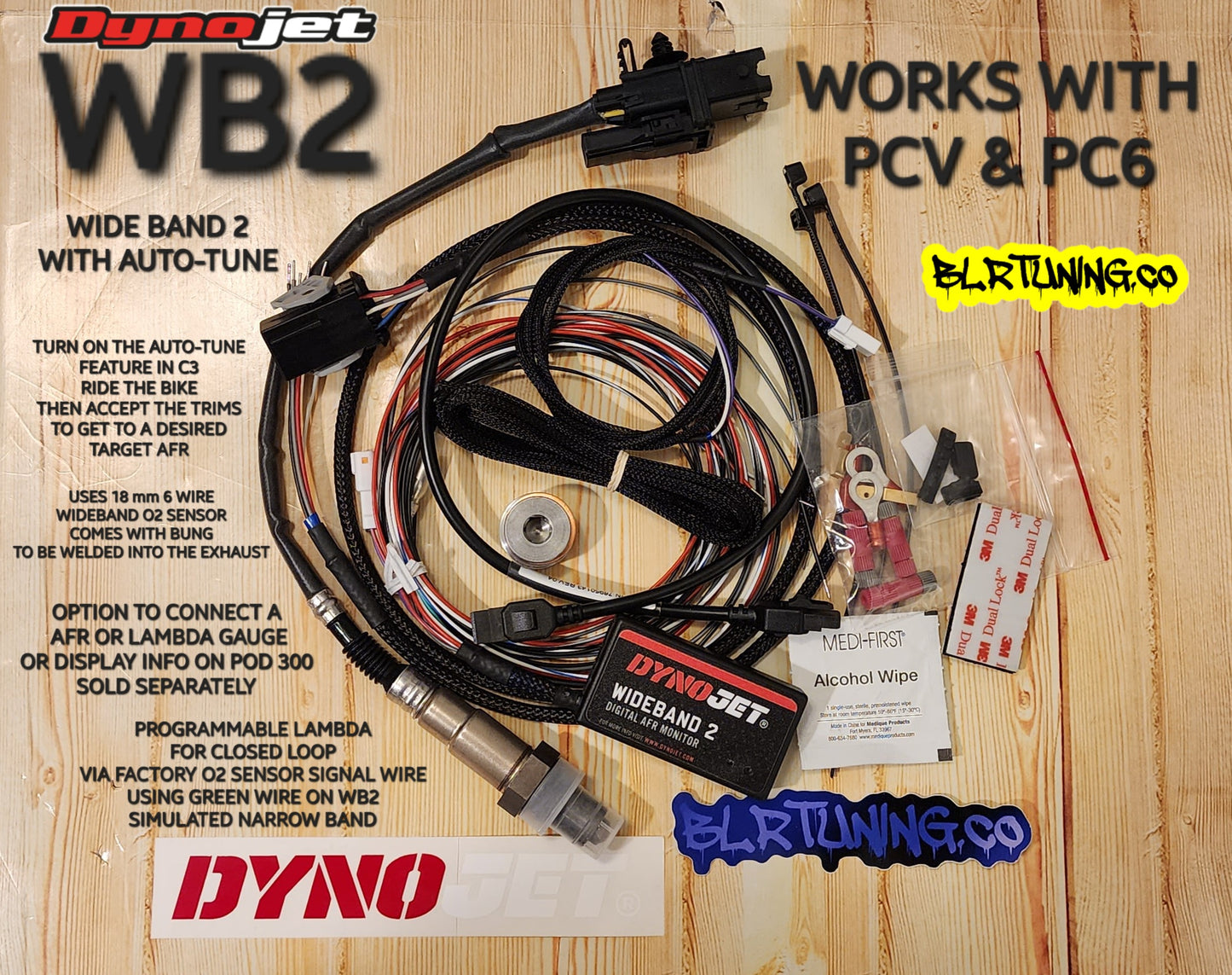

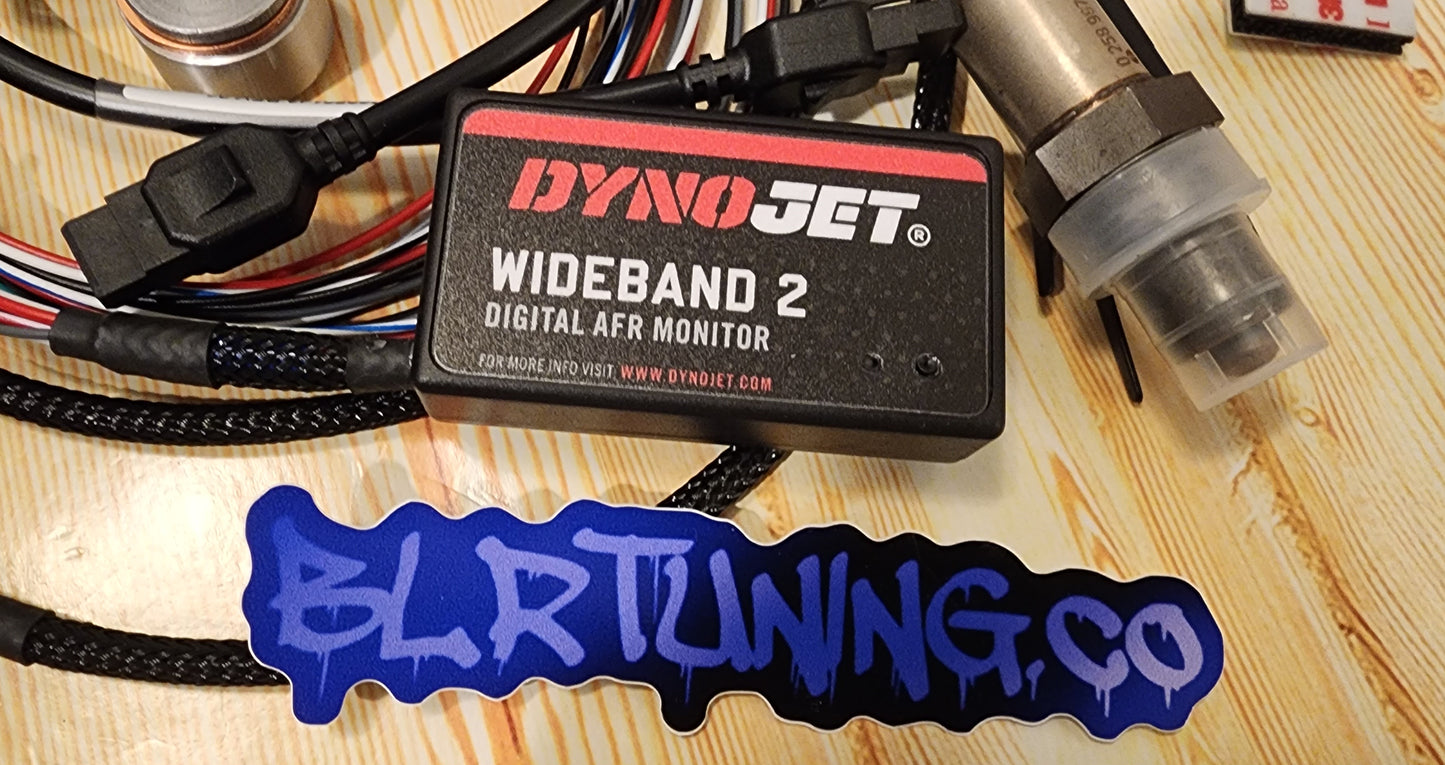

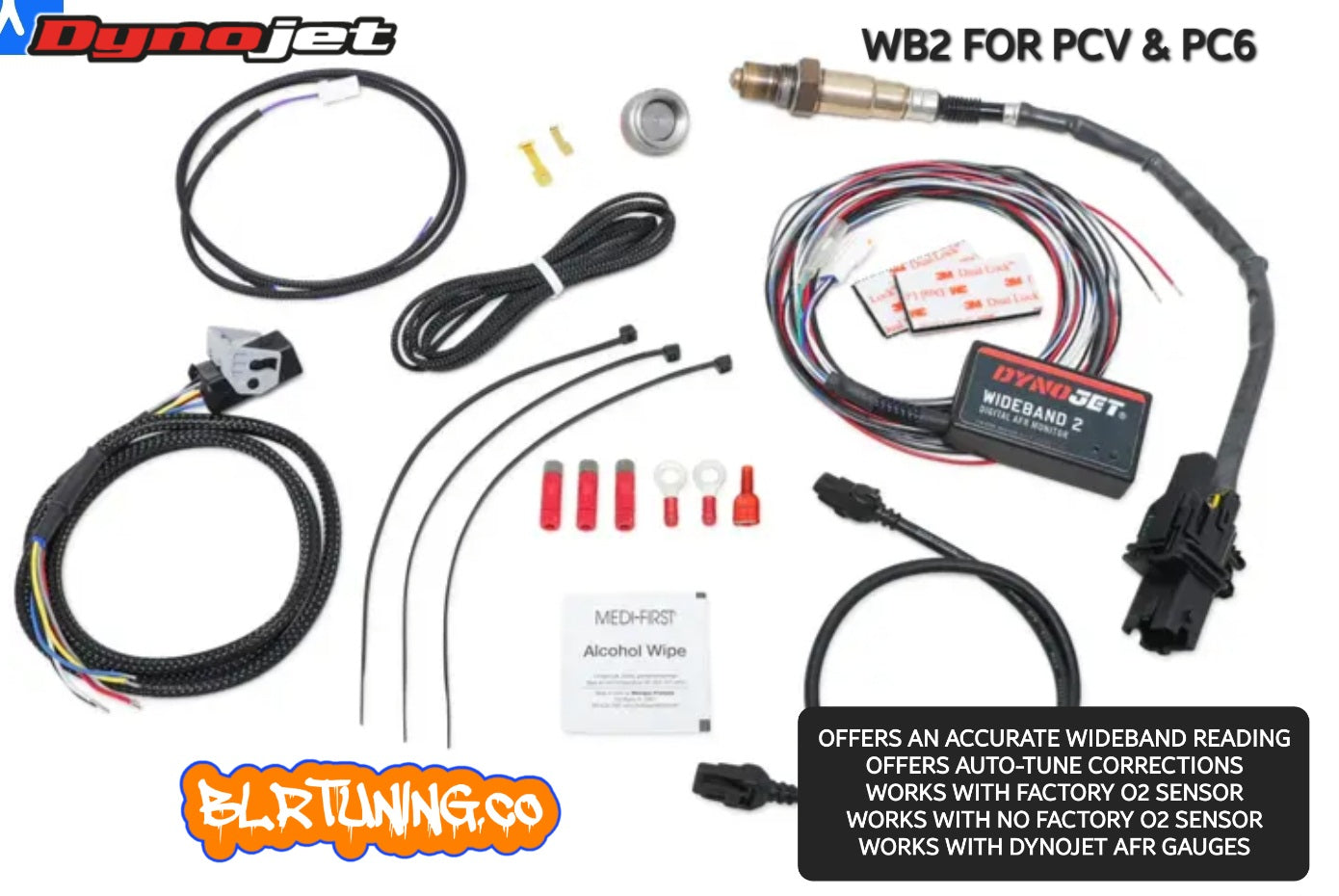

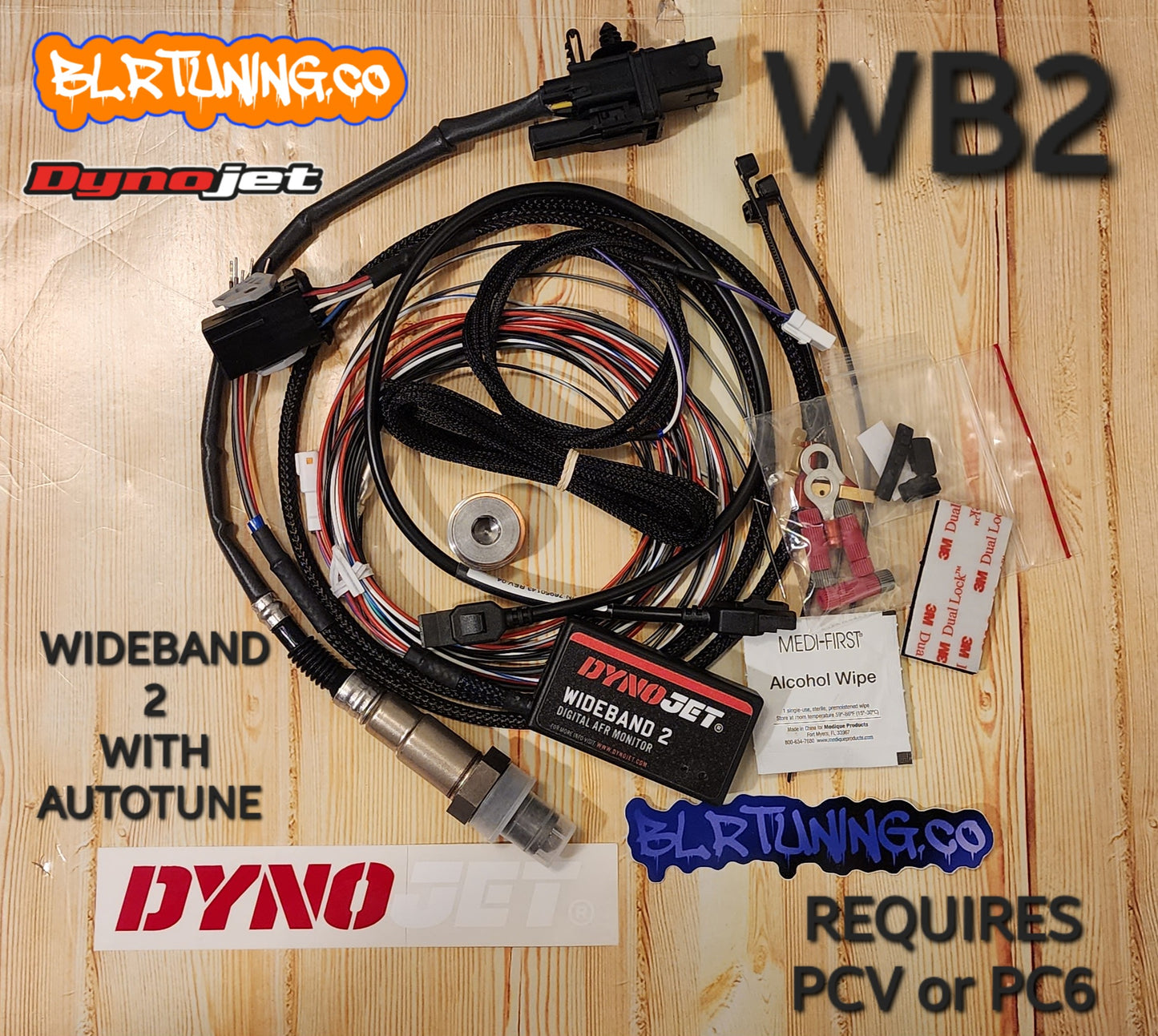

WB2 WIDE BAND 2 WITH AUTOTUNE BASE KIT FOR POWER COMMANDER PC6 PCV

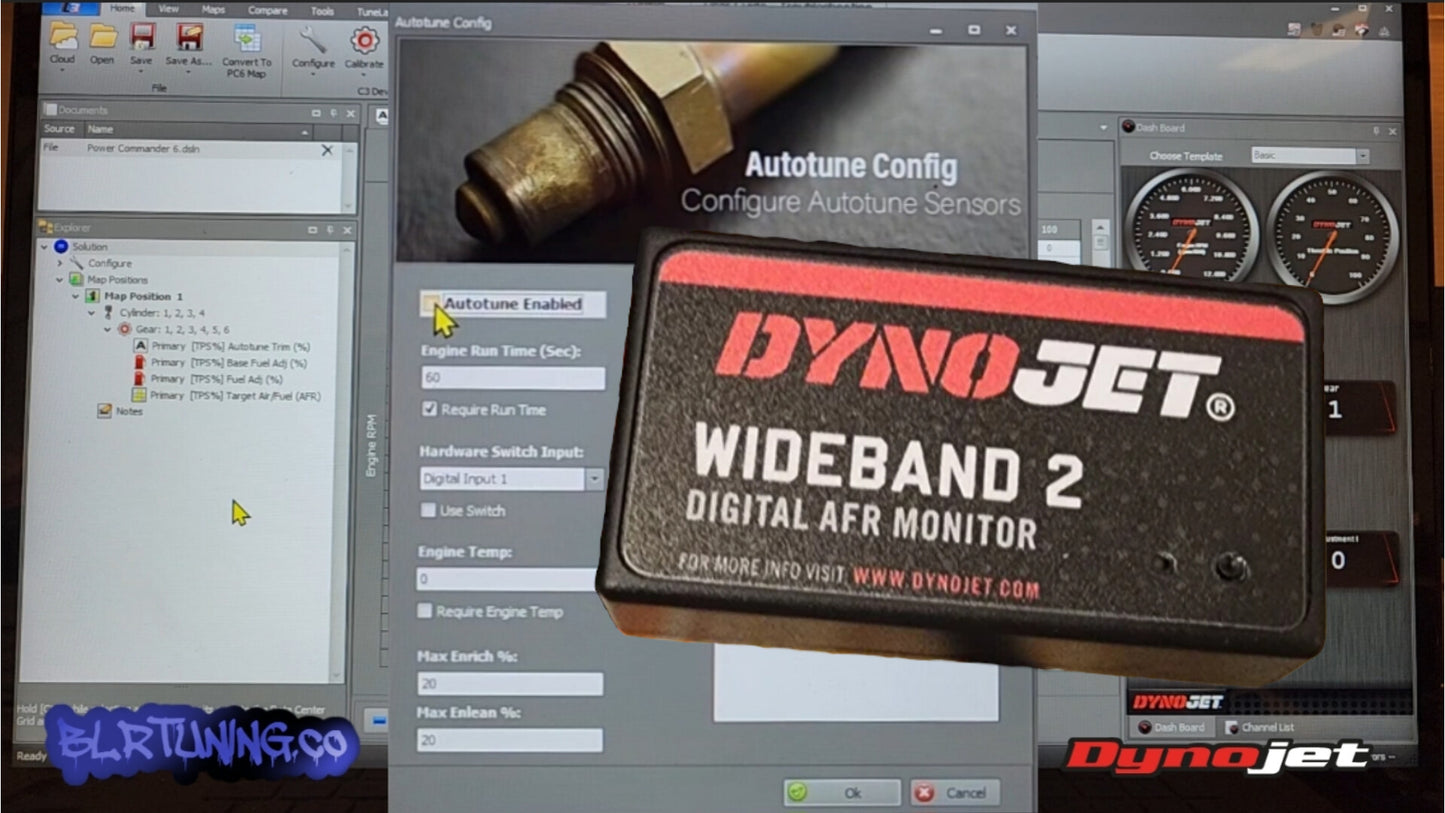

This device will suggest auto-tune fuel trims for you to accept to better dial in your fuel map. You will need to turn on the auto-tune feature in the Dynojet C3 software once this device is installed. The Dynojet C3 software is a part of POWER CORE SUITE which can be downloaded for free from the Dynojet website under the downloads section.

ONCE INSTALLED AND SET UP CORRECTLY YOU WILL NEED TO ACCEPT THE AUTO TUNE TRIM VALUES AFTER YOU RIDE THE BIKE. YOU WOULD DO THIS UNTIL THESE VALUES ARE SHOWING NUMBERS 5 AND BELOW. THEN THE AUTOTUNE CAN BE TURNED OFF. IF YOU MAKE CHANGES TO THE BIKE, FOR EXAMPLE A NEW EXHAUST, THEN TURN BACK ON AUTOTUNE AND START ACCEPTING THE AUTOTUNE TRIMS AGAIN.

YOU CAN UNINSTALL THE WB2 WHEN YOU ARE DONE AND INSTALL IT ON ANOTHER BIKE. OR LEAVE IT INSTALLED TO MONITOR AFR/LAMBDA

THE WB2 USES A HIGH QUALITY 6 WIRE WIDEBAND O2 SENSOR. FOR MOST EXHAUST YOU WILL NEED TO ADD A SECOND O2 SENSOR BUNG WICH WILL COME IN THIS KIT.

This device is also capable of a programmable lambda value through the C3 software. The green wire on the wb2 is used when you still have the factory O2 sensor plugged in to your exhaust or head. It can intercept that O2 sensor signal and help better control the closed loop area of the tuning.

THIS DEVICE WILL WORK WITH DYNOJET AFR GAUGES.

YOU DO NOT HAVE TO HAVE AN AFR GAUGE INSTALLED TO USE THIS DEVICE.

We can help you with your install. If you have questions please feel free to send us an email or give us a phone call.
